High-performance, brushless micromotor for dental labs, 120W, 50000RPM 7.8Ncm stable torque

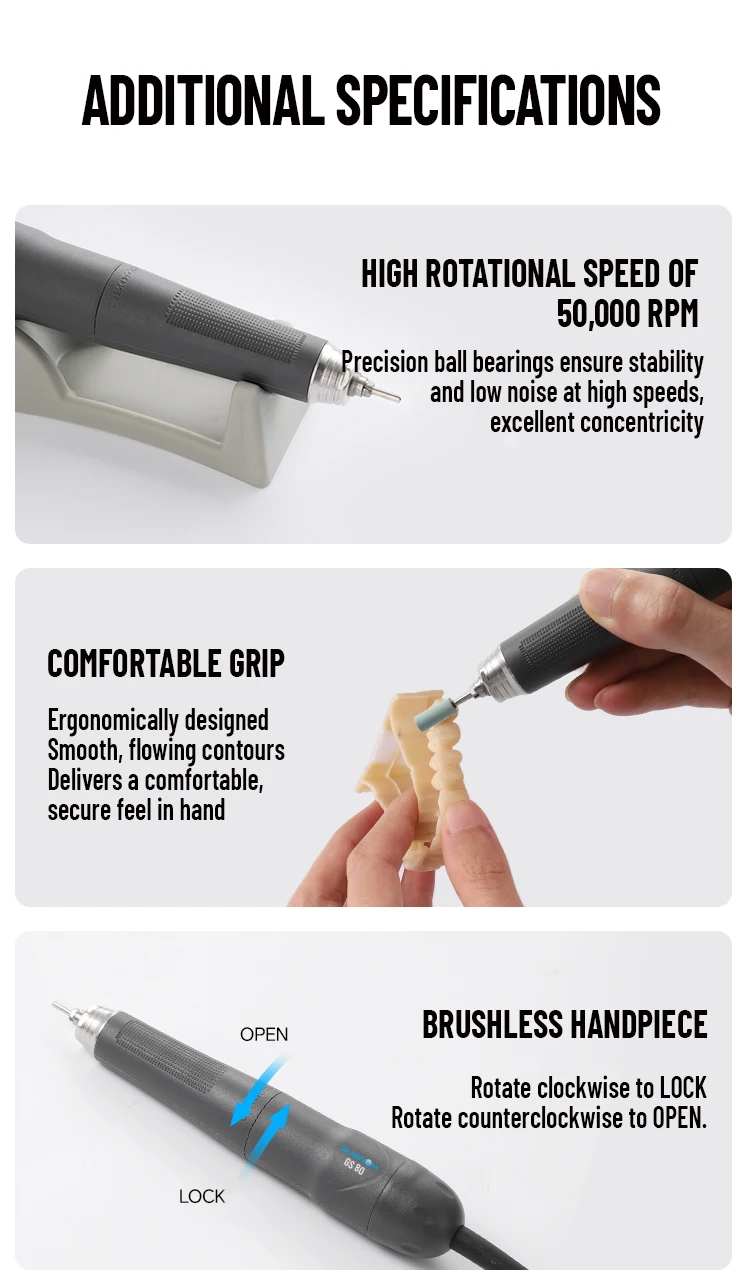

| Brushless Motor Structure | No carbon brush wear, maintenance-free, low noise & low vibration |
| Stable High Torque Output | No speed drop under heavy load when grinding zirconia blocks |

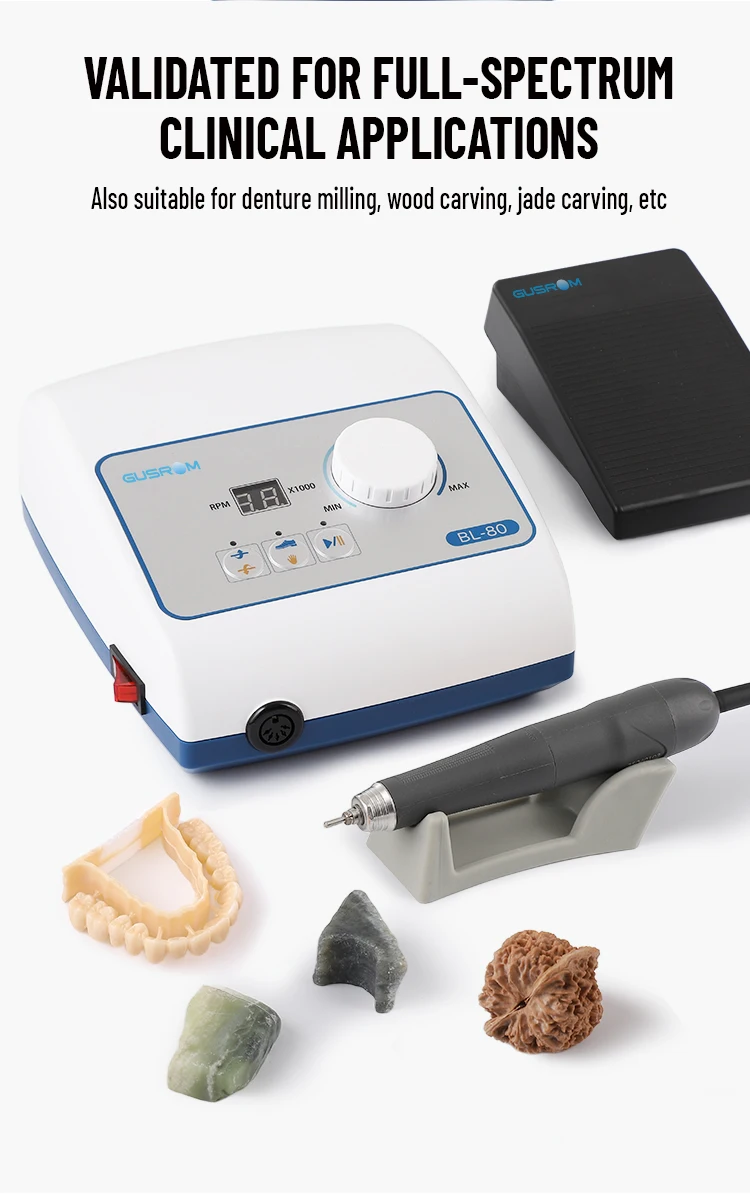

| Wide Application Scenarios | Denture grinding, dental crown polishing, precision jewelry engraving |
| Commercial Customization | Support OEM / ODM private labeling and bulk wholesale orders |
| User-Friendly Operation | Forward/reverse rotation adjustable; no overheating during long continuous work |

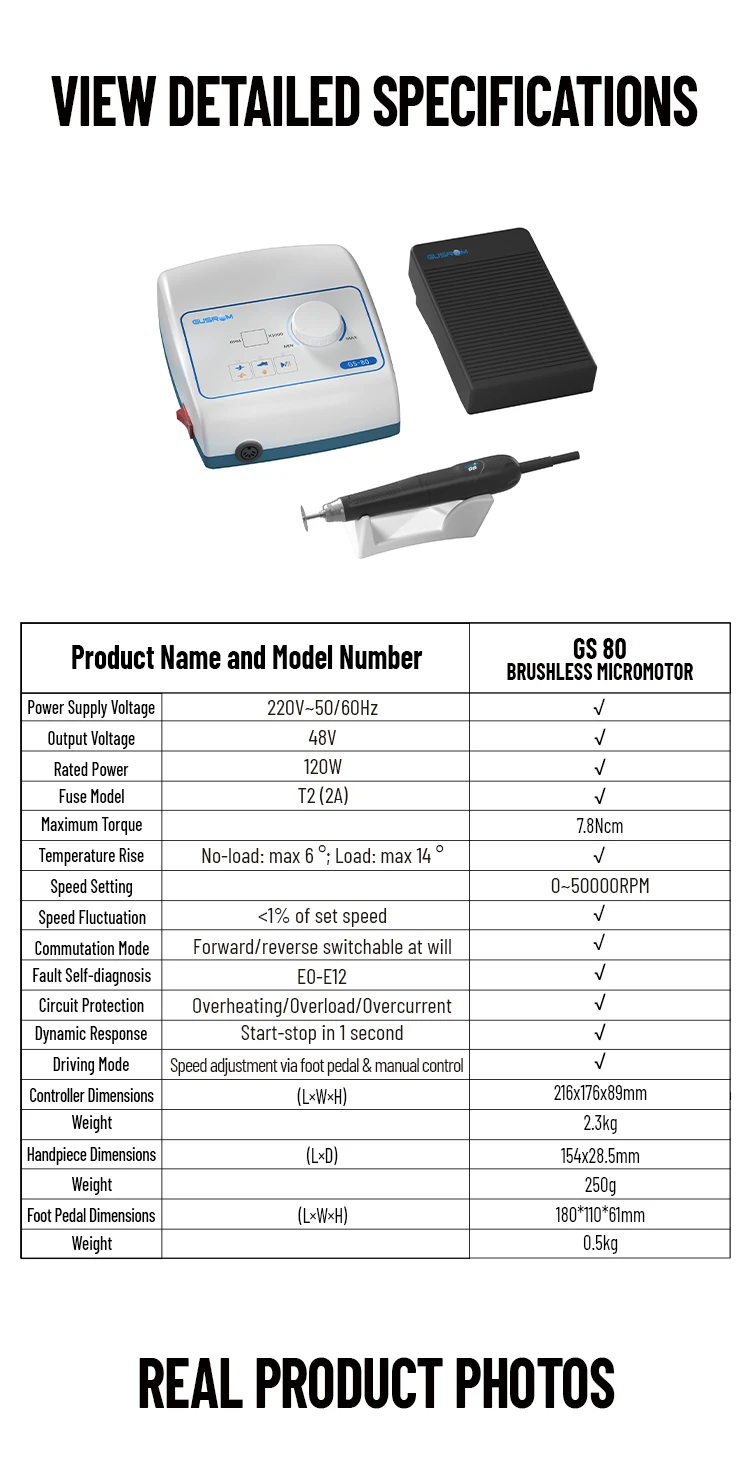

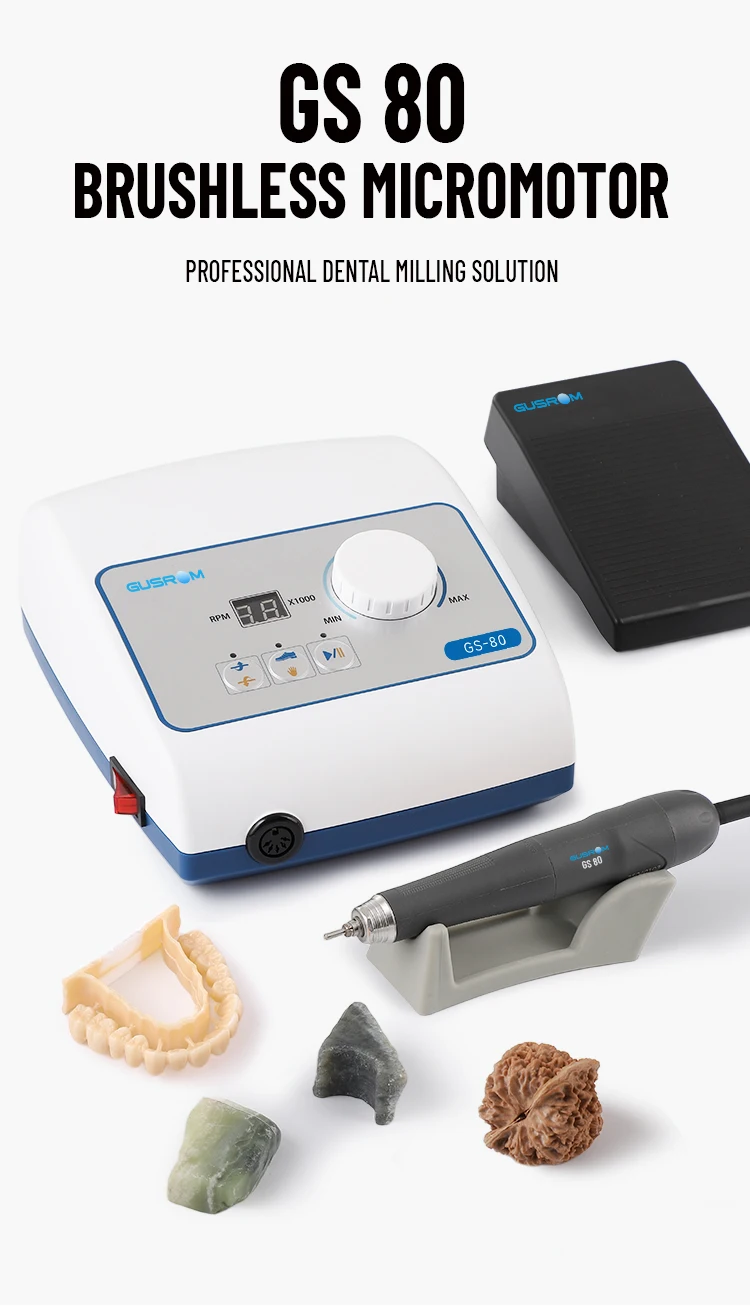

| Product Name and Model Number | GS 80 Brushless Micromotor |
| Power Supply Voltage | 220V~50/60Hz |
| Output Voltage | 48V |
| Rated Power | 120W |
| Fuse Model | T2 (2A) |

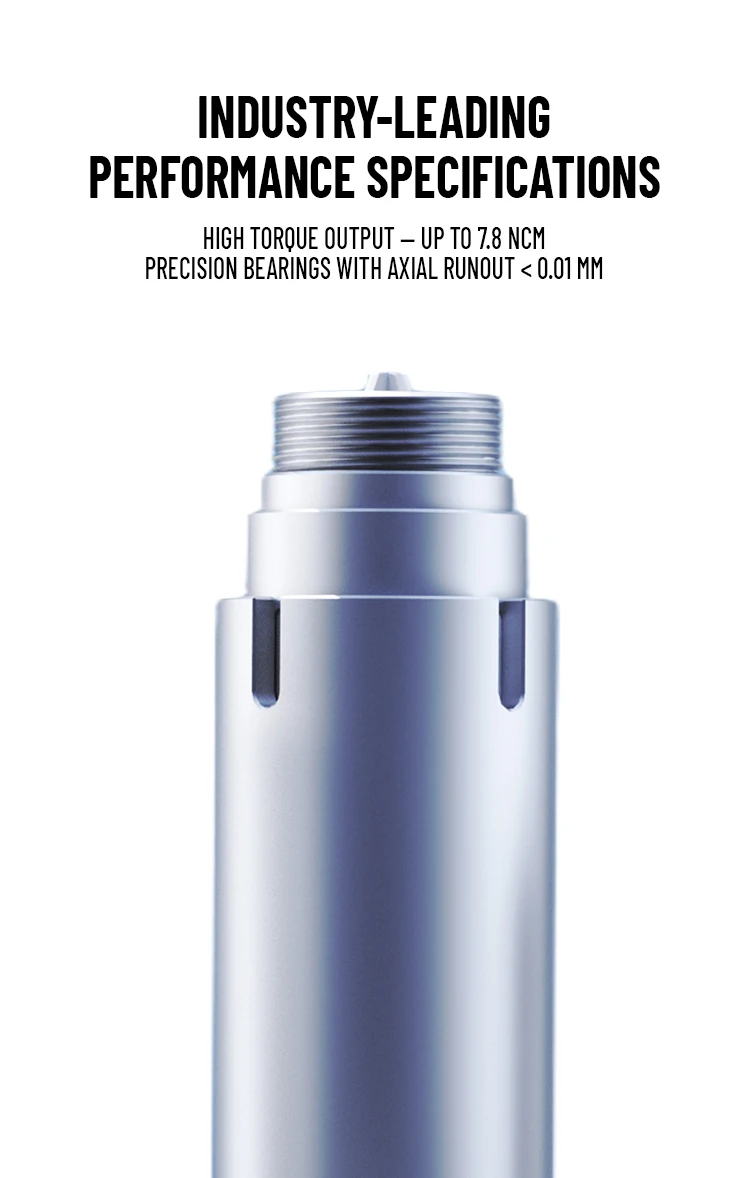

| Maximum Torque | 7.8 Ncm |
| Temperature Rise | No-load: max 6 ℃; Load: max 14 ℃ |
| Speed Setting | 0~50000RPM |
| Speed Fluctuation | <1% of set speed |
| Commutation Mode | Forward/reverse switchable at will |
| Fault Self-diagnosis | E0-E12 |
| Circuit Protection | Overheating / Overload / Overcurrent |
| Dynamic Response | Start-stop in 1 second |

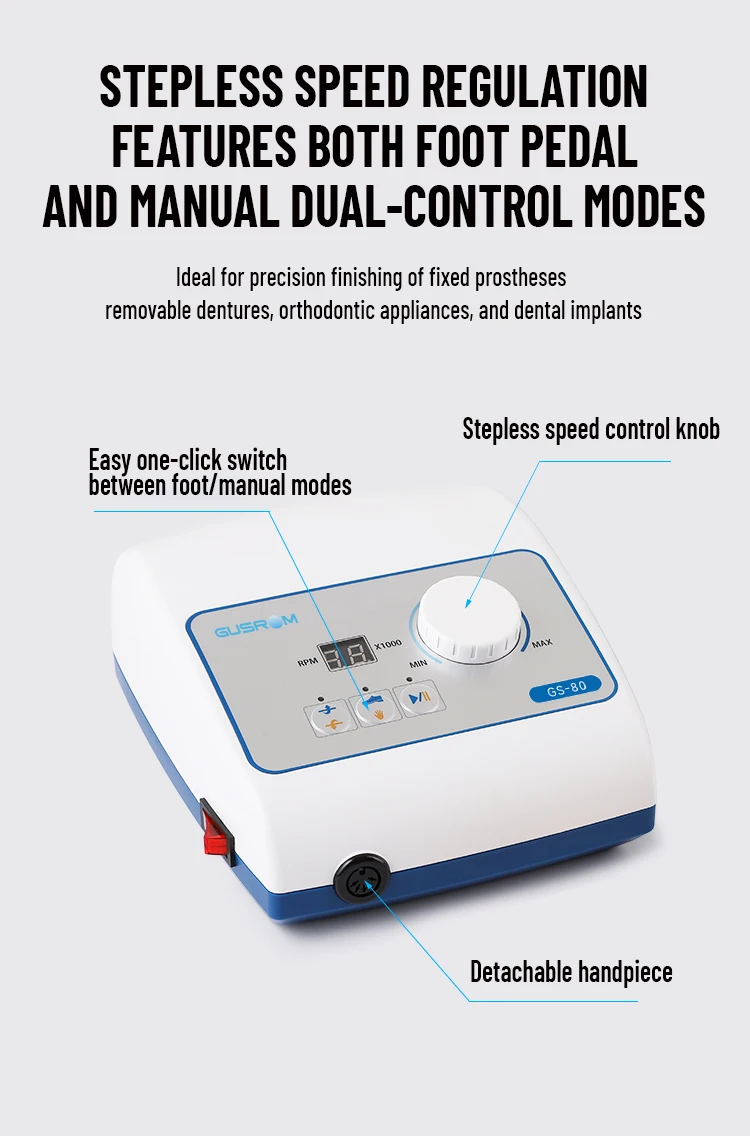

| Driving Mode | Speed adjustment via foot pedal & manual control |

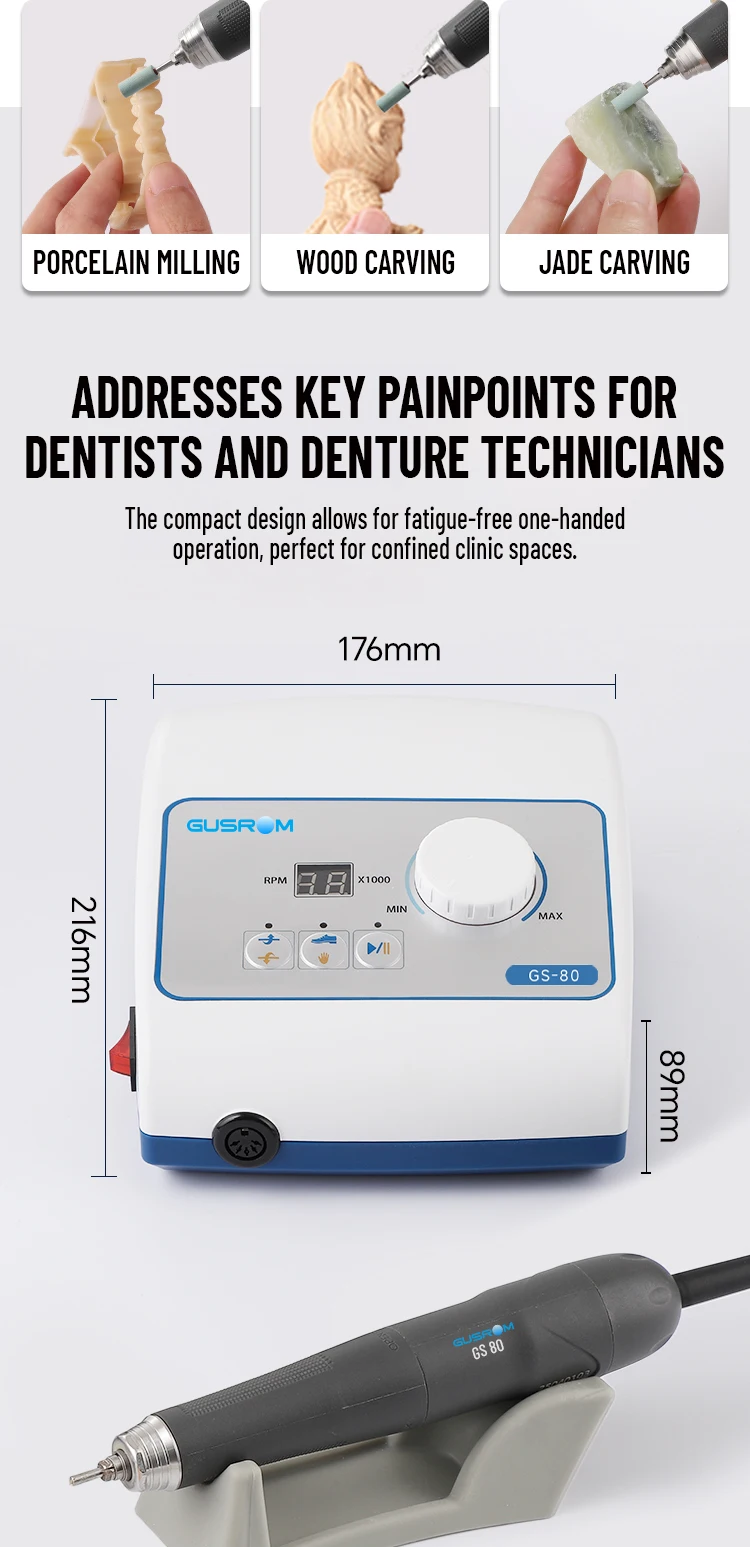

| Controller Dimensions (L×W×H) | 216×176×89mm |
| Controller Weight | 2.3kg |
| Handpiece Dimensions (L×D) | 154×28.5mm |
| Handpiece Weight | 250g |
| Foot Pedal Dimensions (L×W×H) | 180×110×61mm |
| Foot Pedal Weight | 0.5kg |
