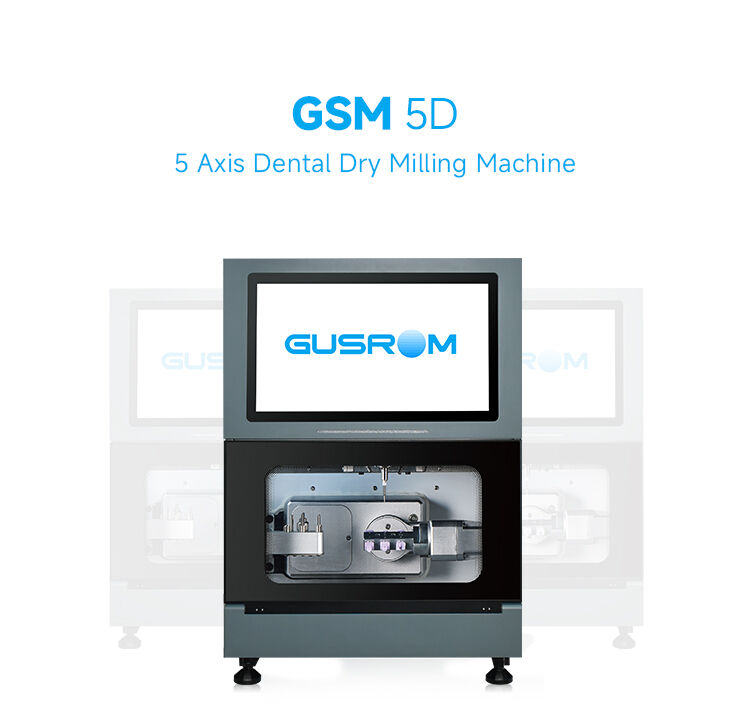

The GSM 5D Dry Milling Machine unlocks 24/7 non-stop denture production potential, boasting industrial-grade precision and a full servo drive system. Its spindle delivers an ultra-high speed of 60,000rpm, enabling fast and efficient milling while accelerating the mass production of zirconia teeth with consistent quality.
Full Servo Drive, Industrial-Grade Precision Control
The dental milling machine integrates high-performance castings, industrial-grade ball screws, and imported electronic components, delivering 24/7 reliable operation with micron-level precision. Built to resist deformation under heavy loads, it ensures a long service life for continuous, stable production.
Axis Linkage & Adaptive Machining

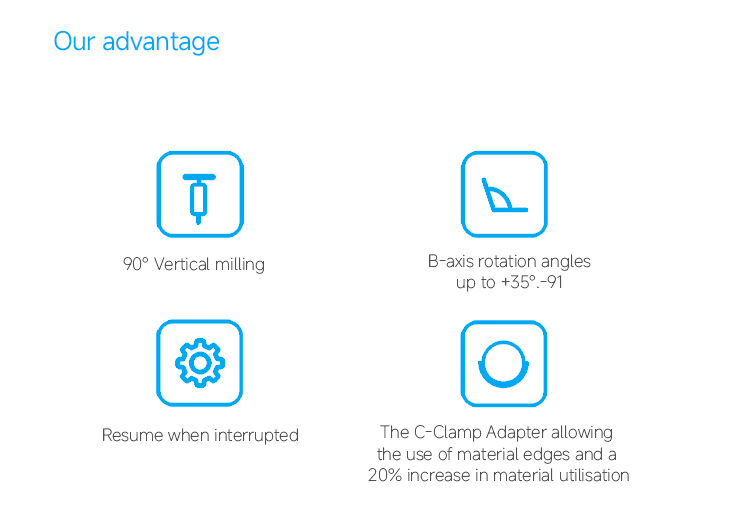

5-axis linkage and a B-axis rotation of 90° enable large-angle processing and ultra-fine surface milling. The zirconia milling machine is ideal for fabricating complex dental prosthetics—such as zirconia crowns and bridges—and is suitable for CAD/CAM milling in dental laboratories.
Intelligent Maintenance System for a Smooth Experience
An intelligent air-pressure protection system enhances operational safety and efficiency for both experienced and trainee technicians.
The tool management system intelligently monitors the lifespan of milling burs and prompts timely replacements to ensure smooth zirconia milling. This dental lab milling machine optimizes tool usage and maintains consistent production quality across batches.

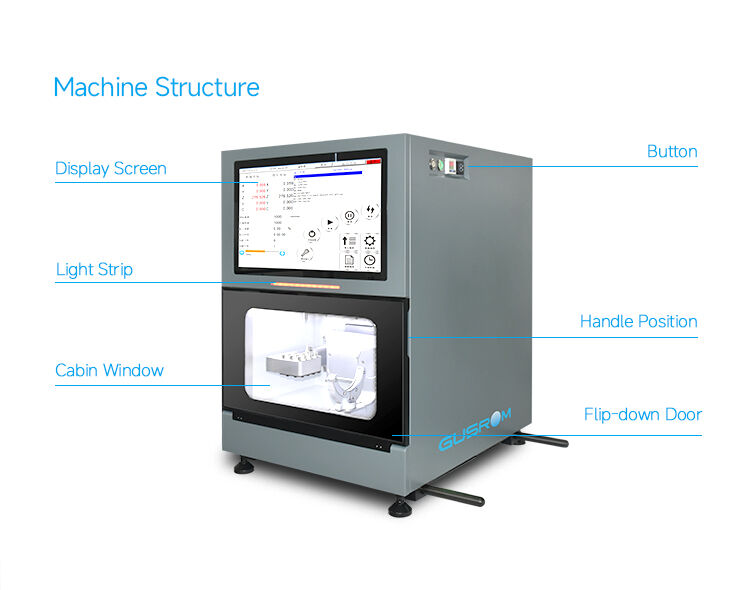

Intuitive Interface, Smooth Operation Experience
A user-friendly interface, touchscreen operation, and real-time processing reports provide a seamless experience for dental technicians.
High-Speed Spindle, High-Efficiency Milling
A 60,000 rpm spindle enables rapid and sustained milling. The GSM 5D dental zirconia milling machine ensures stable, uninterrupted operation 24/7 without manual intervention, meeting the demands of high-volume denture production.
| Item | Specification |
|---|---|
| Axis number | five-axis linkage |
| Milling method | dry milling |
| Milling types | inner crown, full crown, bridge, inlay, onlay, veneer, bracket |
| Milling material | zirconia block, wax, PMMA, PEEK, composite material |
| Material size | 98mm diameter, 10-30mm thickness disc |
| Stroke range | X/Y/Z: 200-120-120 A: 360° B: -38°～+135° |
| Spindle speed | 0～60000rpm/800W |
| Drive | full servo motor |
| Milling bur | 10 pcs |
| Diameter | 4mm |
| Size | 530*650*760mm |
| Weight | 145KG |
| Required air pressure | 4.5-7.5bar |
| Compressed air flow | about 50L/min |
| Minimum dust suction volume | about 3000L/min |
| Power | 1500W |
| Power supply | 220-230V AC, 50/60HZ |
Q: Are you a manufacturer or trading company
A:We are a OEM/ODM Professional manufacturing company in dentistry since 2010 with more than 14 years experience
Q: How long is your delivery time? if l want to customize the products, how long does it take
A: 1. lf the products are in stock, it is 5-7 working days.2. We can provide customized services for our customers. lt takes about 15 days
Q: How can l order
A:We will make quotation after you send us your purchase plan(including product name, model and quantity). lf you agree with the quotation, please send us your company name, address and telephone for goods delivery. We will make proforma invoice and inform you the payment way. Goods delivery details will also be informed accordingly
Q: How is your company's product after-sales service
A:The product warranty period is 12 months, we can provide lifetime maintenance, We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues if you have problem in using, you can describe the problem details, we will ask technician to give your solution. Free spare parts can be provided if necessary
Q: What's your product
A: We have full zirconia series including White blocks; SHT zirconia blocks; UT zirconia, etc. We also provide other milling solution materials such as Multilayer PMMA, Mono PMMA, Transparent PMMA, WAX, miling burs, fast sintering furnace, glaze/stain kit and digital design service etc
