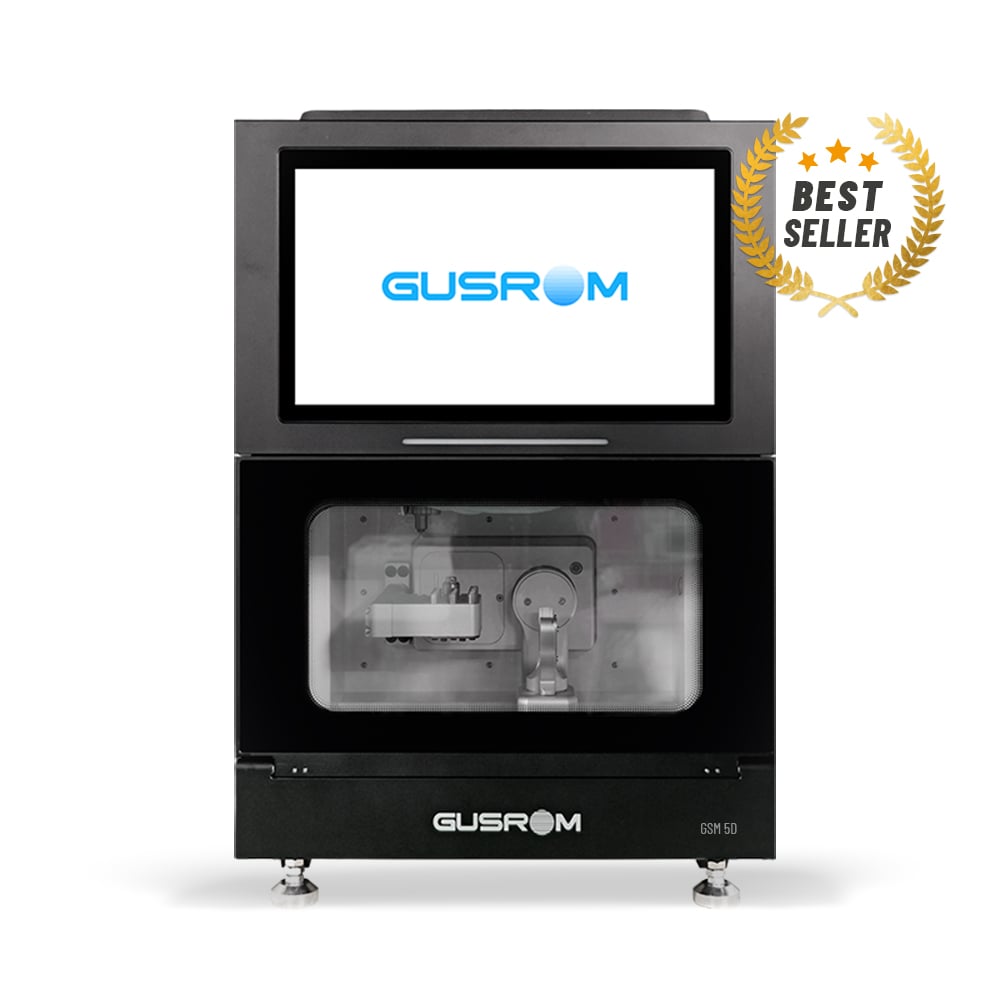

GSM 5D-C 5-Axis Vertical Dry Milling Machine - 60000rpm High-Speed Spindle, Industrial-Grade Ball Screw, Full Servo Drive for Dental Prosthetics

Features

High-Precision
5-Axis Dental Milling Machine featuring a 60000rpm high-speed spindle,
industrial-grade ball screw
and full servo drive
Equipped with automatic calibration, 90° B-axis processing,
24/7 reliable operation for maximum efficiency

Product parameter

Item	Specification
Model	GSM 5D-C
Axis Number	5-axis linkage
Milling Method	Dry milling
Milling Types	PMMA, lithium disilicate, pre-milled titanium blank
Processable Types	inner crown, full crown, bridge, inlay, onlay, veneer, bracket
Milling Material	Zirconia block, Wax, PMMA, PEEK, composite material
Material Size	98mm diameter, 10-30mm thickness disc
Stroke Range	X/Y/Z: 200-120-120 A: 360° B: -38° ~ +135°
Spindle Speed	0 ~ 60000rpm/800W
Drive	Full servo motor
Tools Magazine	13 pcs Diameter: 4mm
Size	530650760mm
Weight	180KG Gross weight: 230KG
Required Air Pressure	4.5-7.5bar
Compressed Air Flow	about 50L/min
Minimum Dust Suction Volume	about 3000L/min
Power	1500W
Power Supply	220-230V AC, 50/60HZ

Product Details

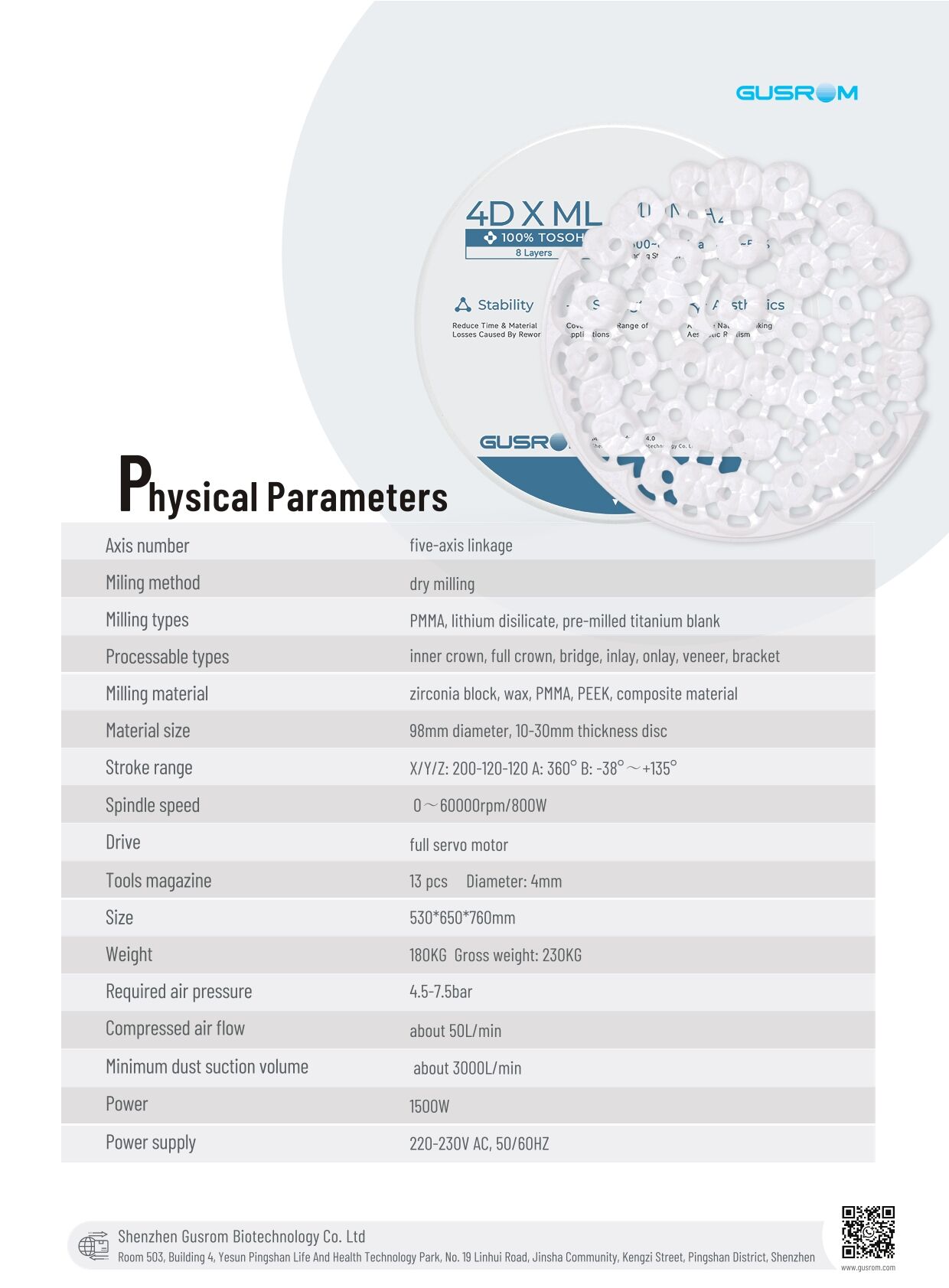

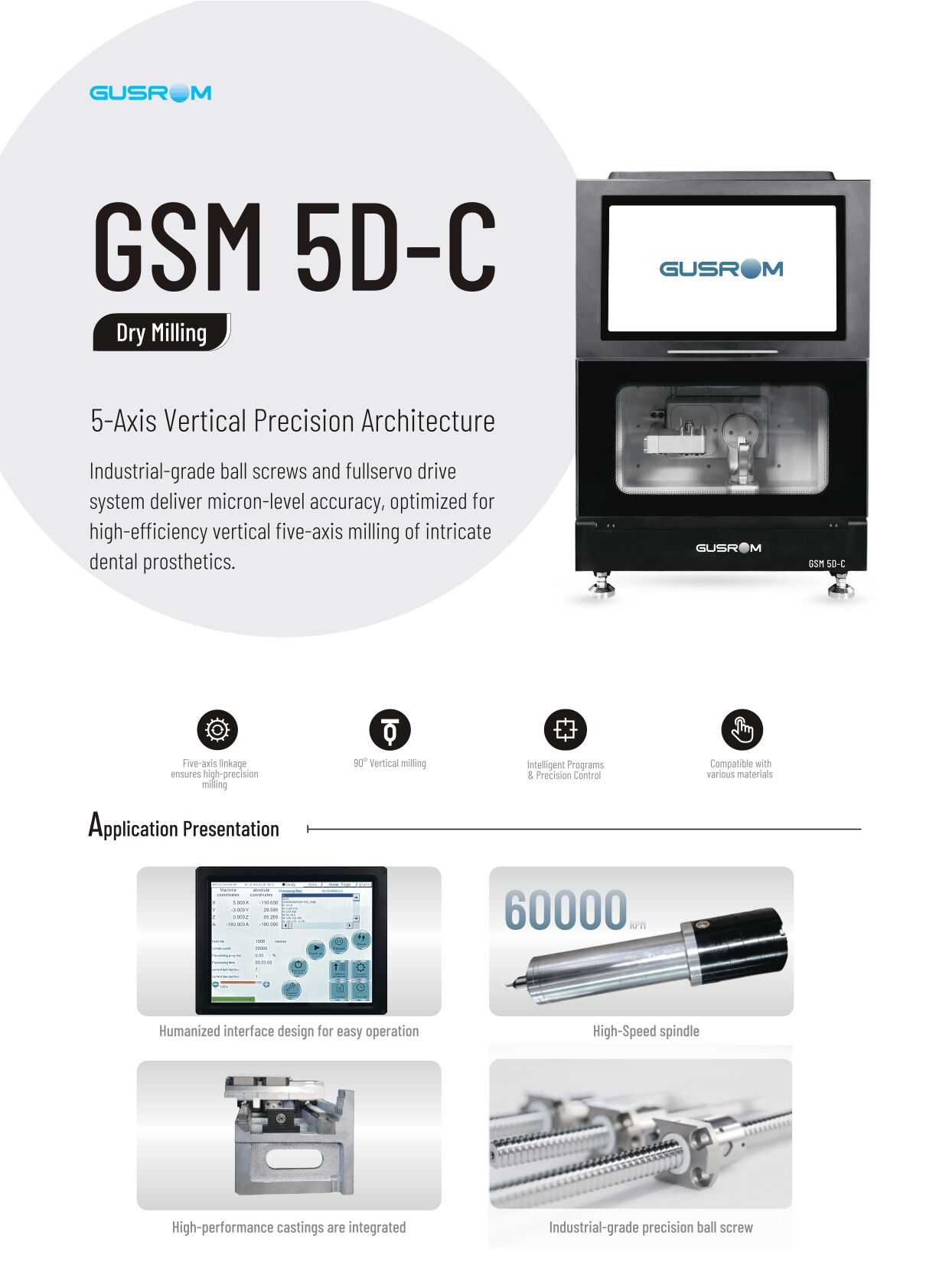

单页 A4-27.jpg 单页 A4-28.jpg

FAQ

Q: Are you a manufacturer or trading company
A: We are an OEM/ODM professional manufacturing company focused on dental products, officially established in 2024. Our core technical and R&D team has over 10+ years of industry experience in dentistry, ensuring high-quality product development and production.

Q: How long is your delivery time? if l want to customize the products, how long does it take
A: 1. lf the products are in stock, it is 5-7 working days.2. We can provide customized services for our customers. lt takes about 15 days

Q: How can l order
A:We will make quotation after you send us your purchase plan(including product name, model and quantity). lf you agree with the quotation, please send us your company name, address and telephone for goods delivery. We will make proforma invoice and inform you the payment way. Goods delivery details will also be informed accordingly

Q: How is your company's product after-sales service
A:The product warranty period is 12 months, we can provide lifetime maintenance, We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues if you have problem in using, you can describe the problem details, we will ask technician to give your solution. Free spare parts can be provided if necessary

Q: What's your product
A: We have full zirconia series including White blocks; SHT zirconia blocks; UT zirconia, etc. We also provide other milling solution materials such as Multilayer PMMA, Mono PMMA, Transparent PMMA, WAX, miling burs, fast sintering furnace, glaze/stain kit and digital design service etc
