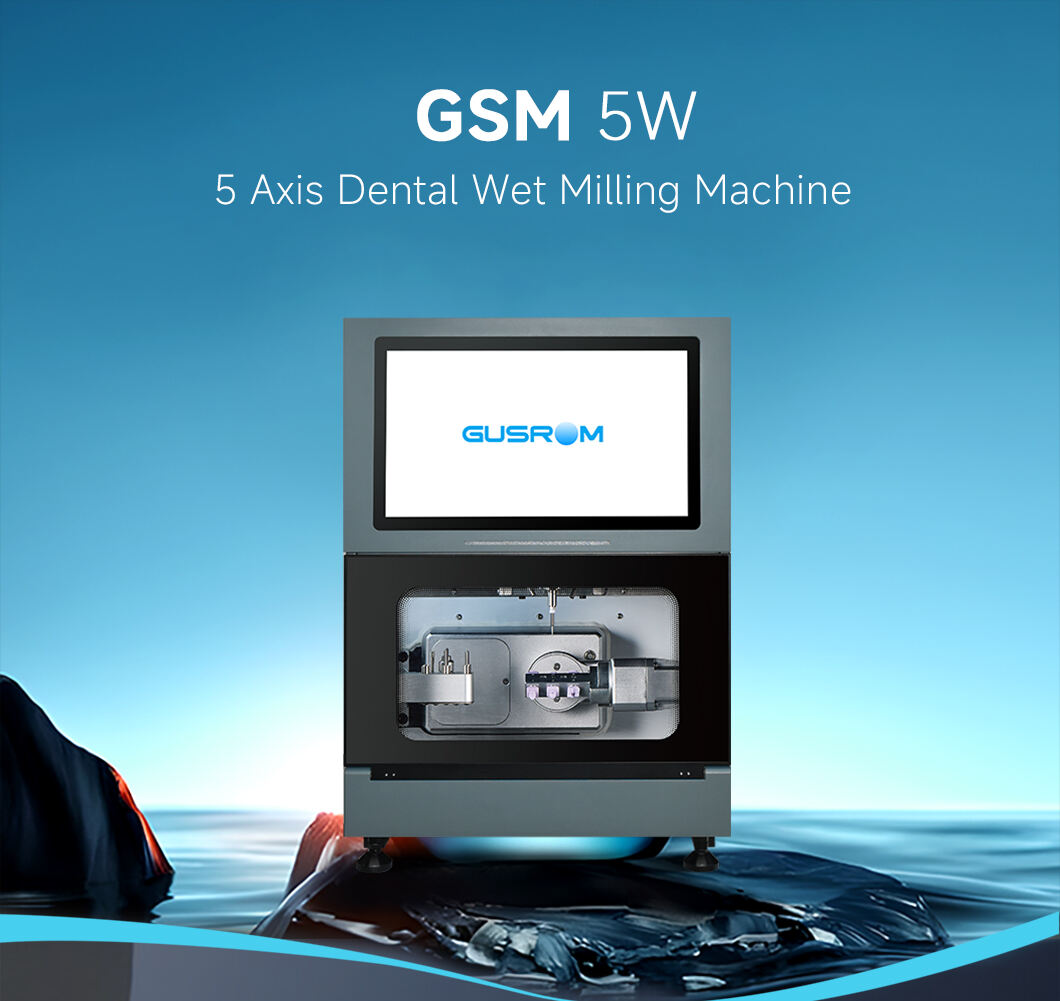

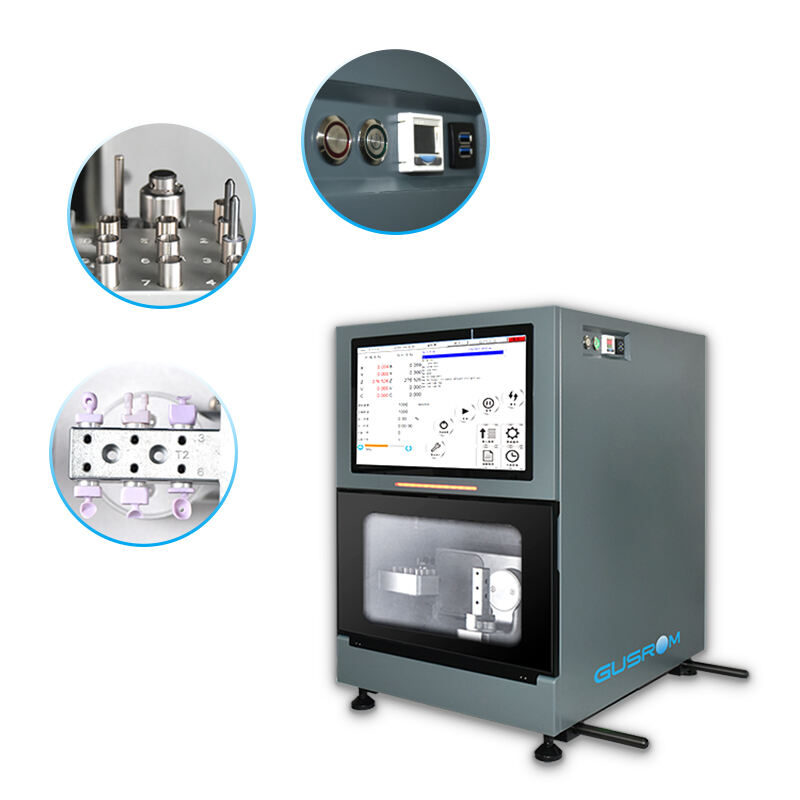

GSM 5W Wet Milling Machine-Brings versatility with various dental material

Features

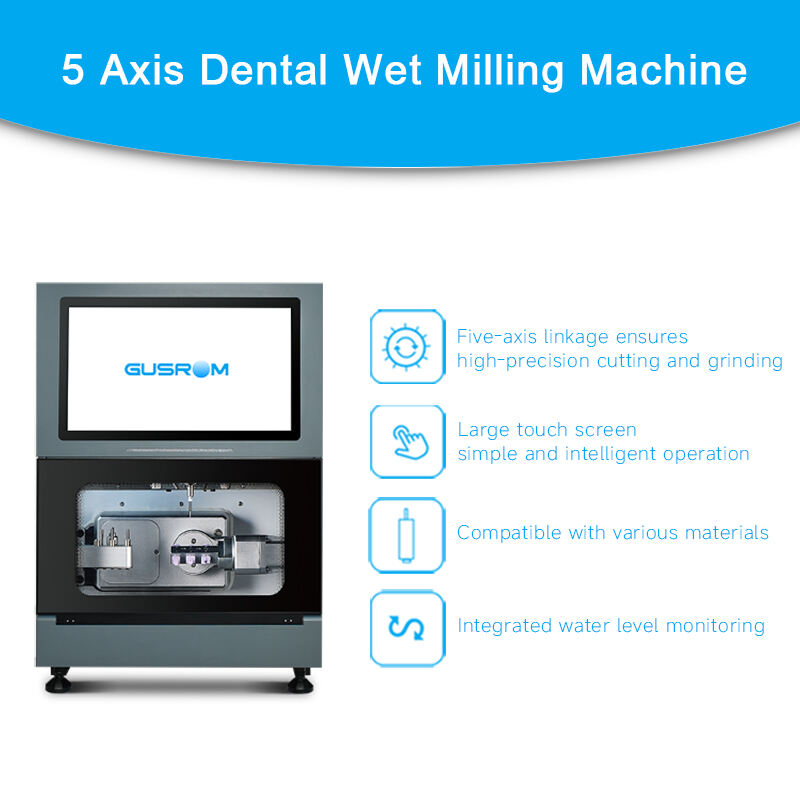

5-Axis Vertical Precision Architecture

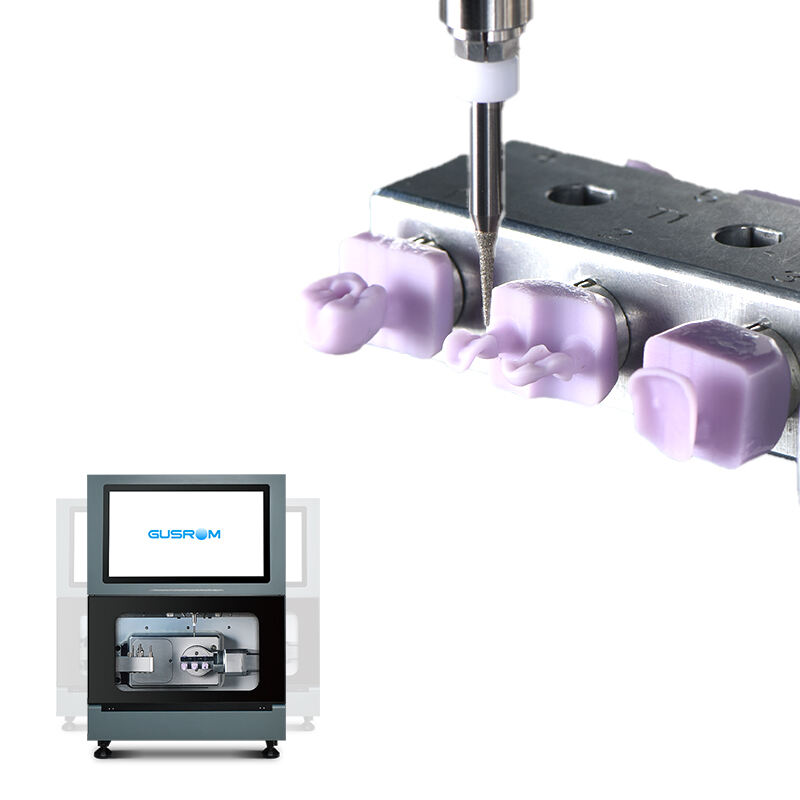

5 axis 5 linkage and large-angle processing expand the capability of milling various dental restorations, such as onlay, inlay, crown, etc.
Micron-level accuracy of this CAD/CAM milling machine deliveries high-precision surface milling of intricate dental prosthetics.

Titanium Processing & Adaptive Workflow
Enables 90 machining of pre-milled titanium blanks and break point resume function, ensuring seamless production of complex shape.

Multi-Material Versatility & Speed

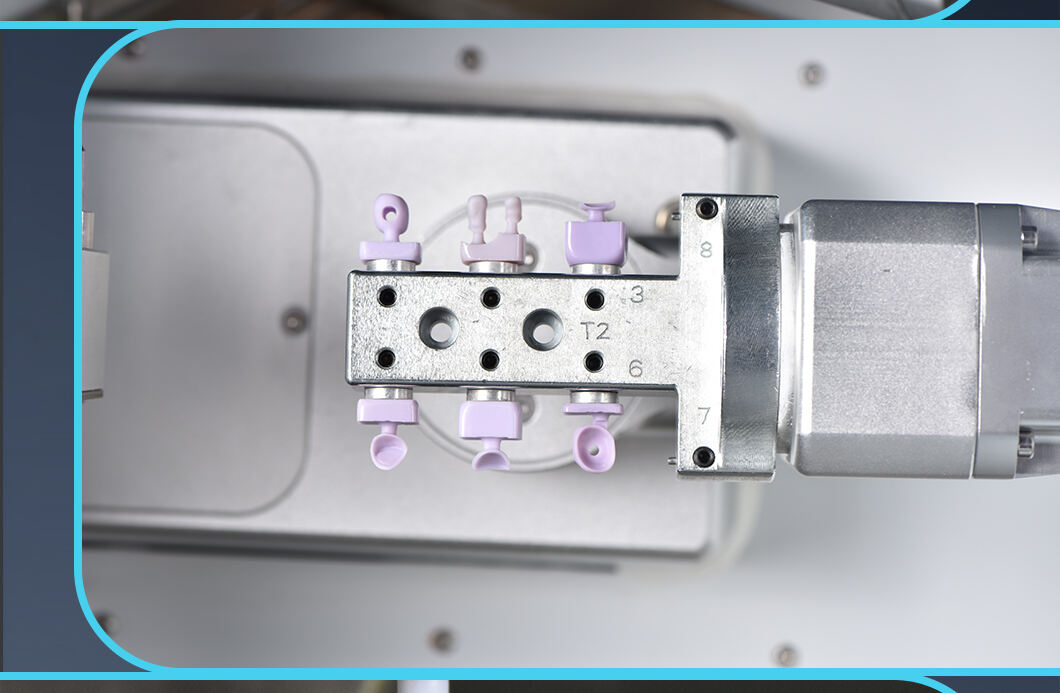

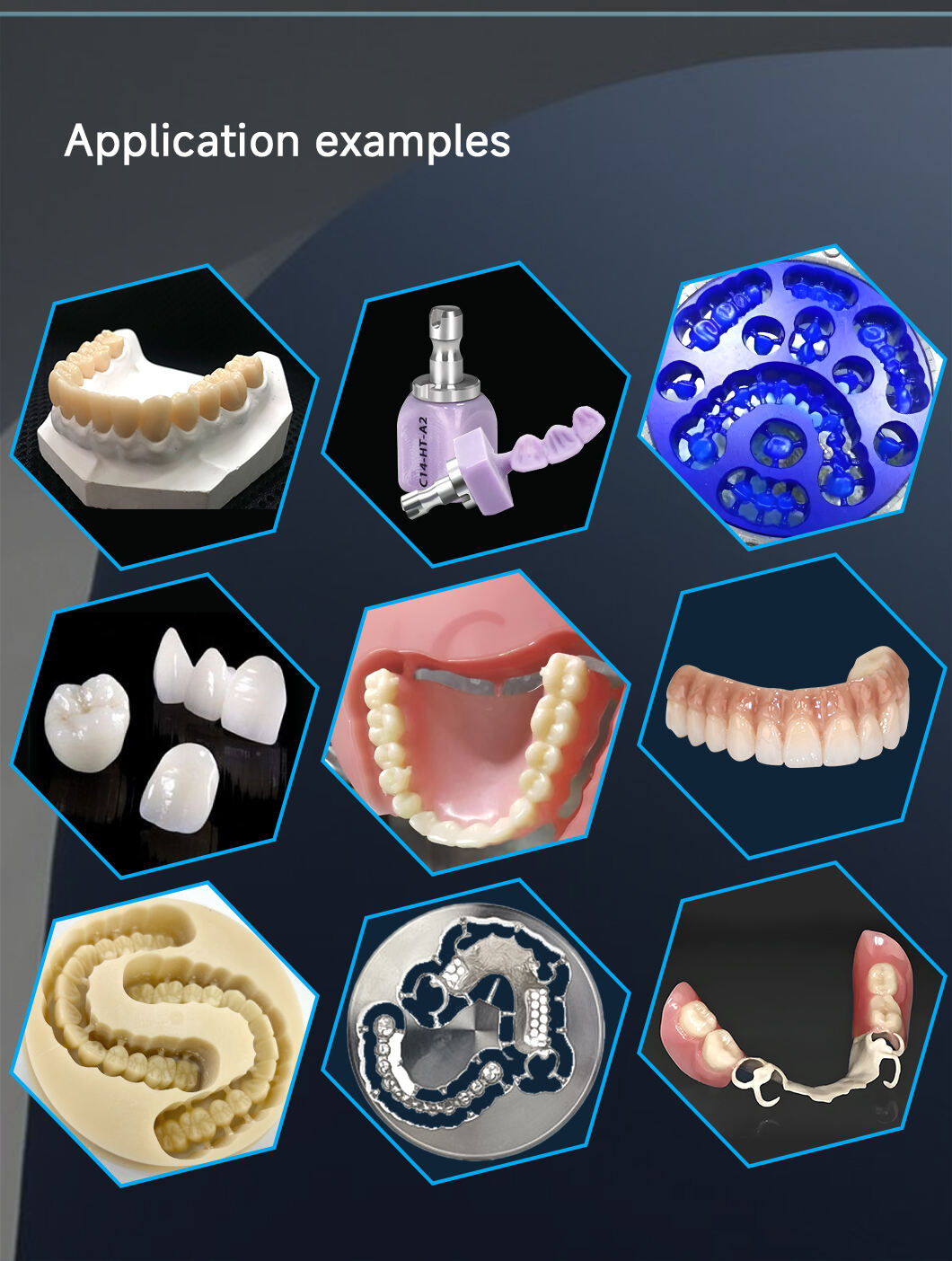

GSM 5W teeth milling machine supports to processes crowns, inlays, veneers and interface bases of lithium disilicate with the speed of 10-30mins/unit. The milling machine meets diverse clinical restoration demands of dental laboratories.

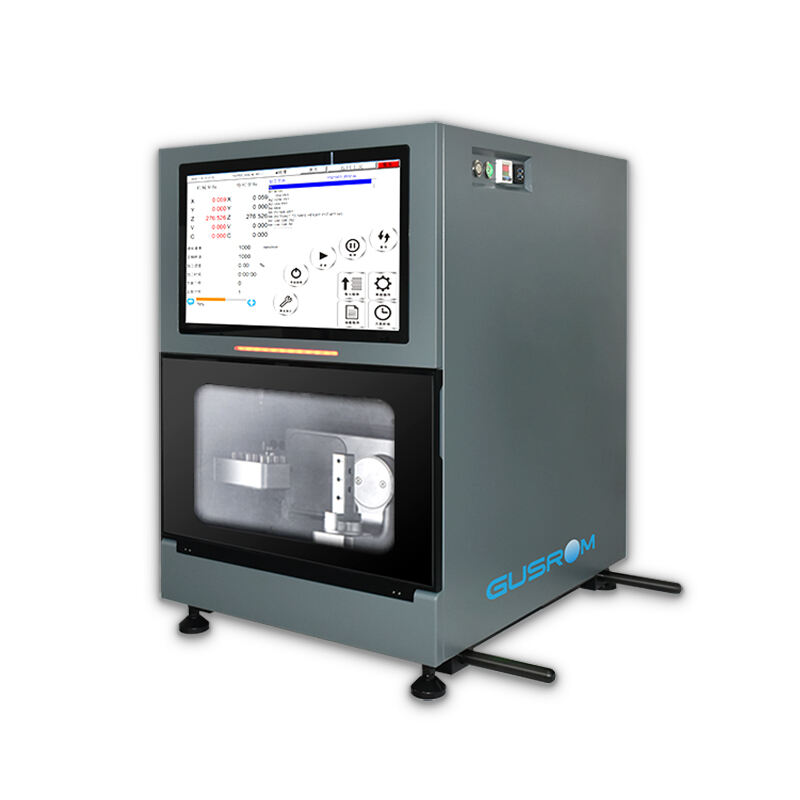

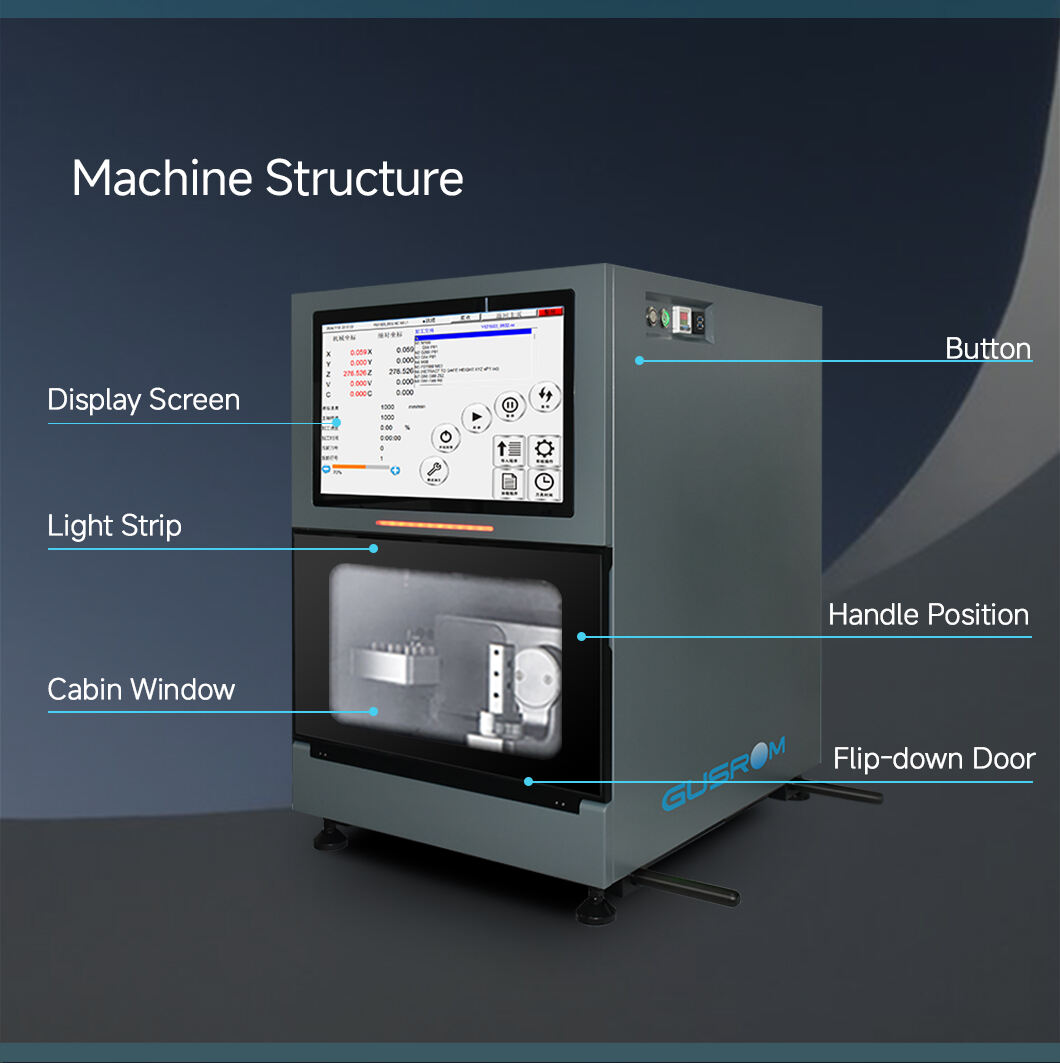

User-Centric Intelligent Interface
Intuitive interface design reduces operational complexity, accelerating workflow efficiency in high-volume dental labs.

Product parameter

Axis number: five-axis linkage
Milling method: wet milling
Stroke range: X/Y/Z: 200-120-120, A:360°, B:-38°~+135°
Spindle speed: 0~60000rpm/500W
Drive: full servo motor

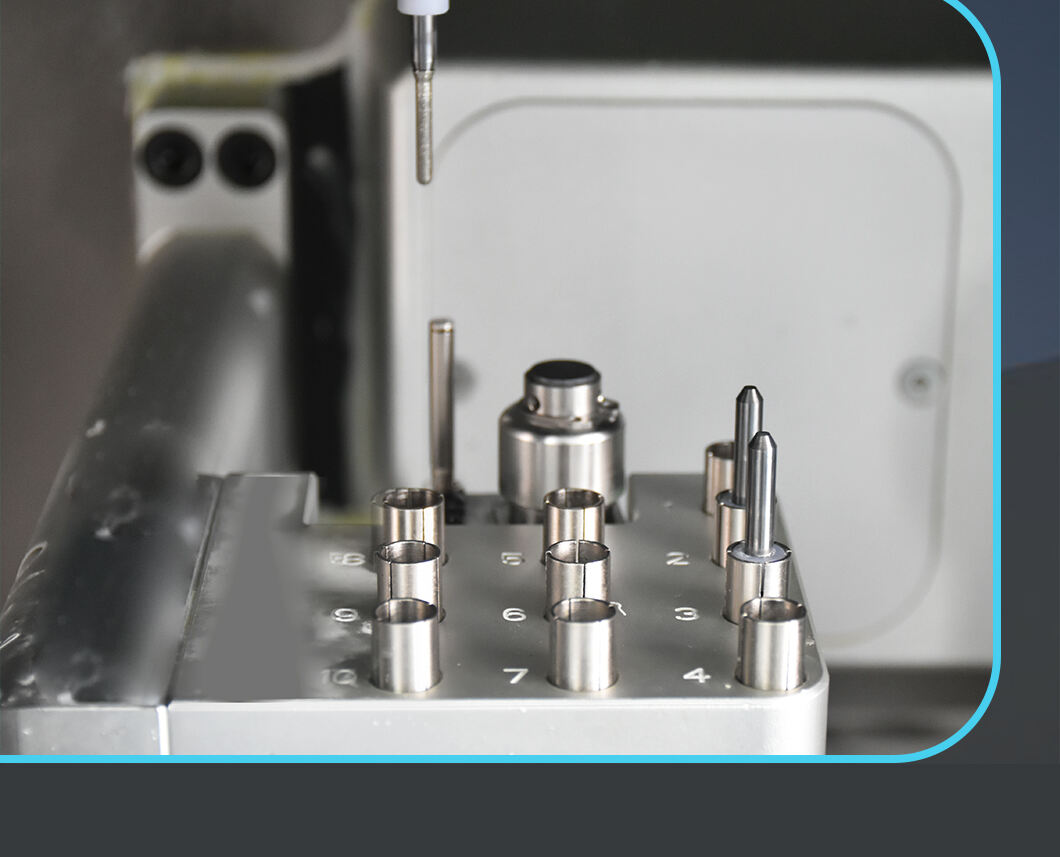

Milling bur: 10 pcs (Diameter: 4mm)
Milling materials: PMMA, lithium disilicate, pre-milled titanium blank

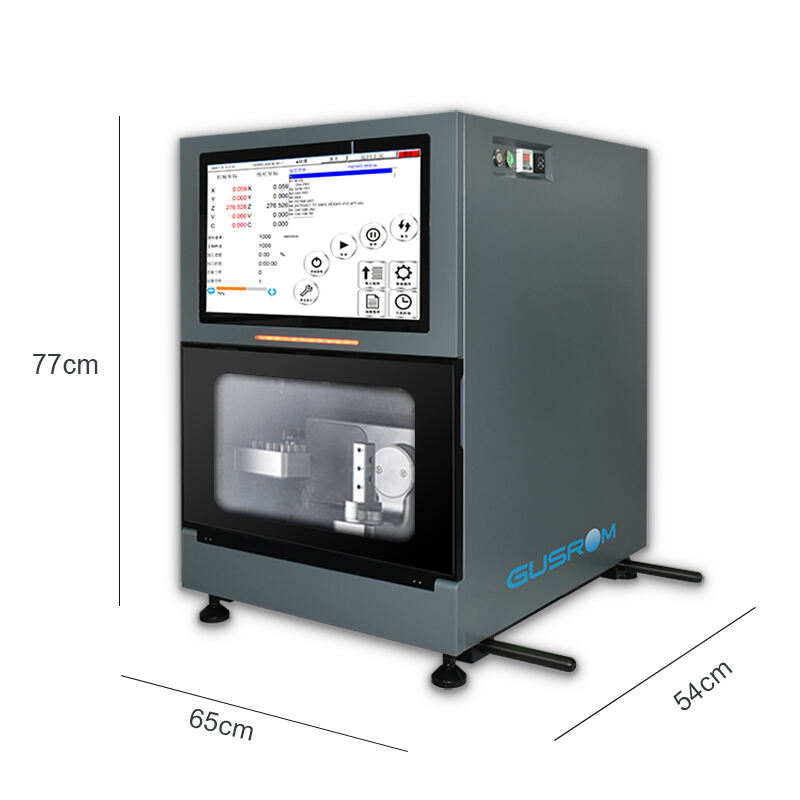

Size: 530*650*760mm
Net Weight: 156KG
Gross Weight: 180KG
Required air pressure: 4.5-7.5bar
Compressed air flow: about 50L/min
Power: 1500W
Power supply: 220V AC, 50HZ

Product Details
