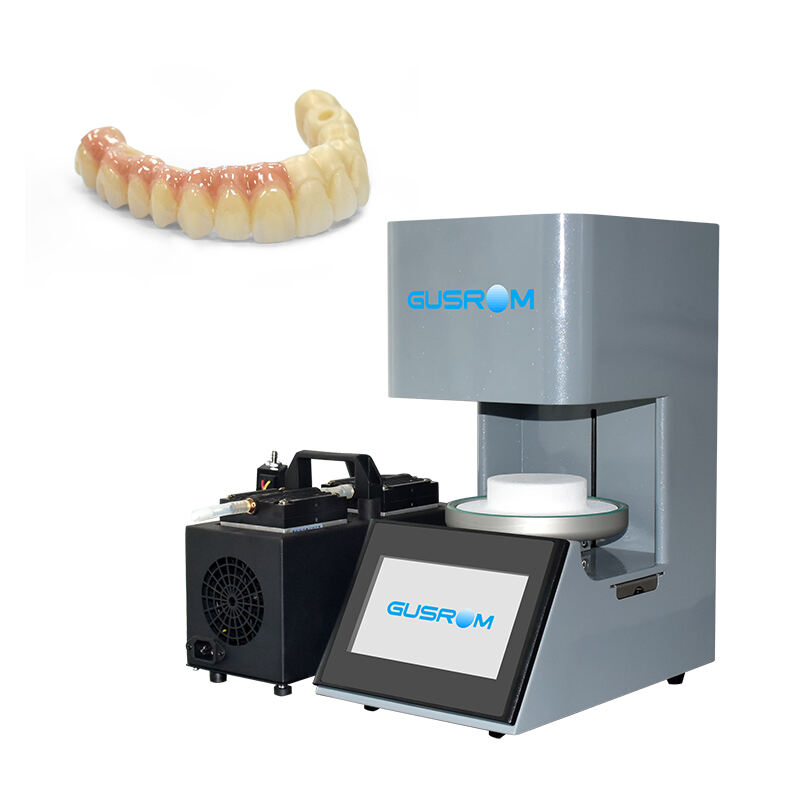

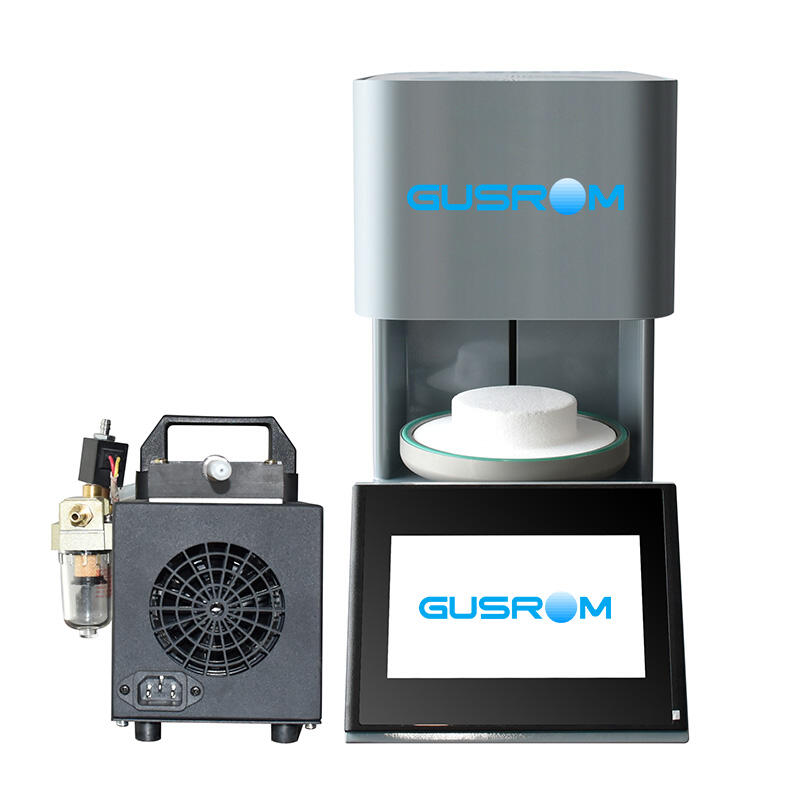

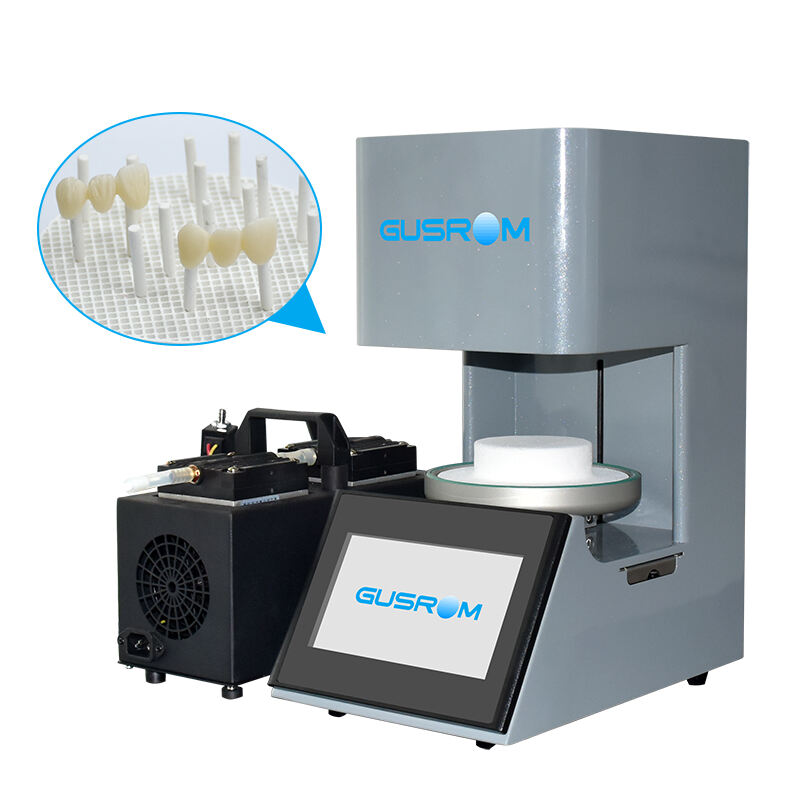

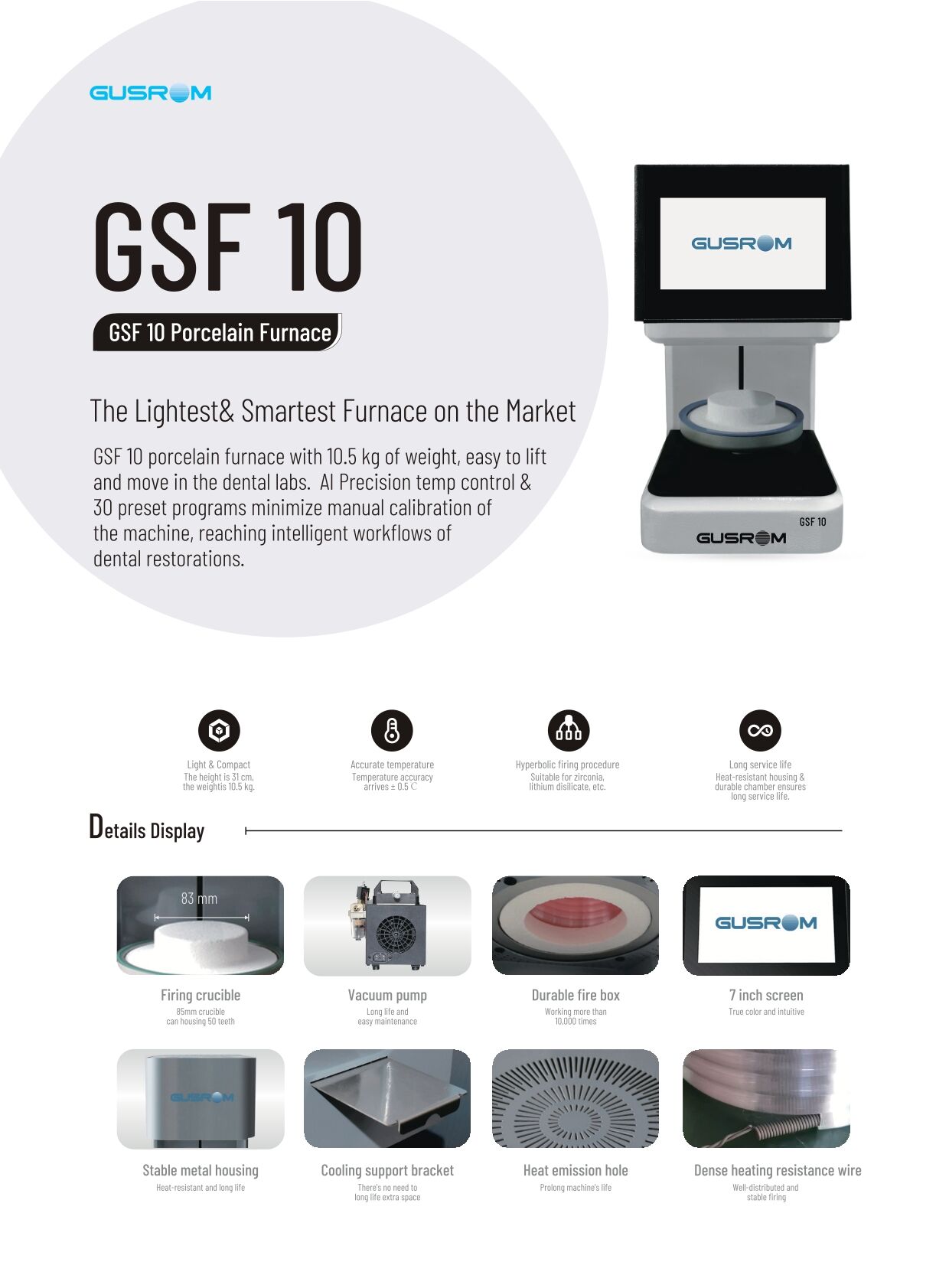

GSF 10 Porcelain Furnace-the Lightest & Smartest Furnace on the Market

Features

Intelligent Single/Dual-Curve Sintering: Lightest porcelain furnace on the market. Single-curve(P1-P25) and dual-curve modes (P26-P28) tailored for lithium disilicate crystallization ensurig complete material transformation and aesthetic outcomes.

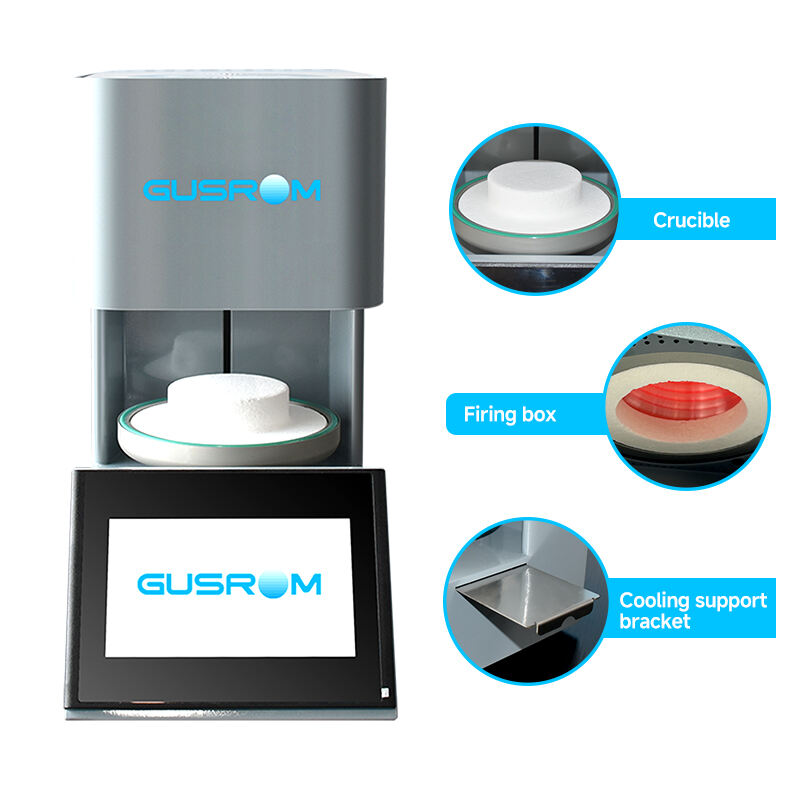

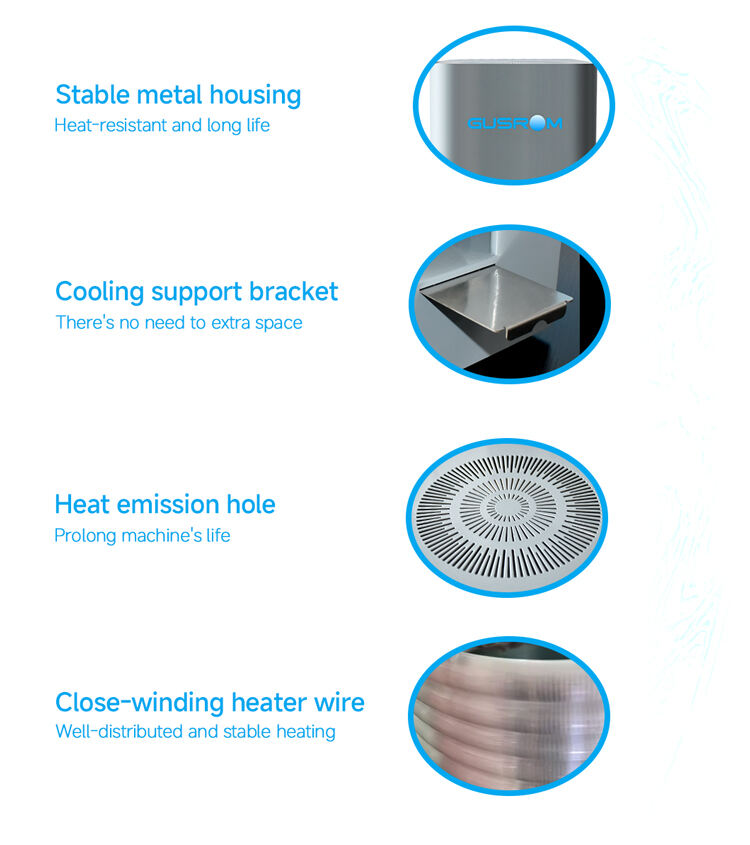

Al Precision Temp Control & Robust Structure: ±0.5℃accuracy via Al algorithms. German-engineered quartz spiral chamber with densely wound heating wires & linear guides guarantees uniform temperature distribution and vibration free durability.

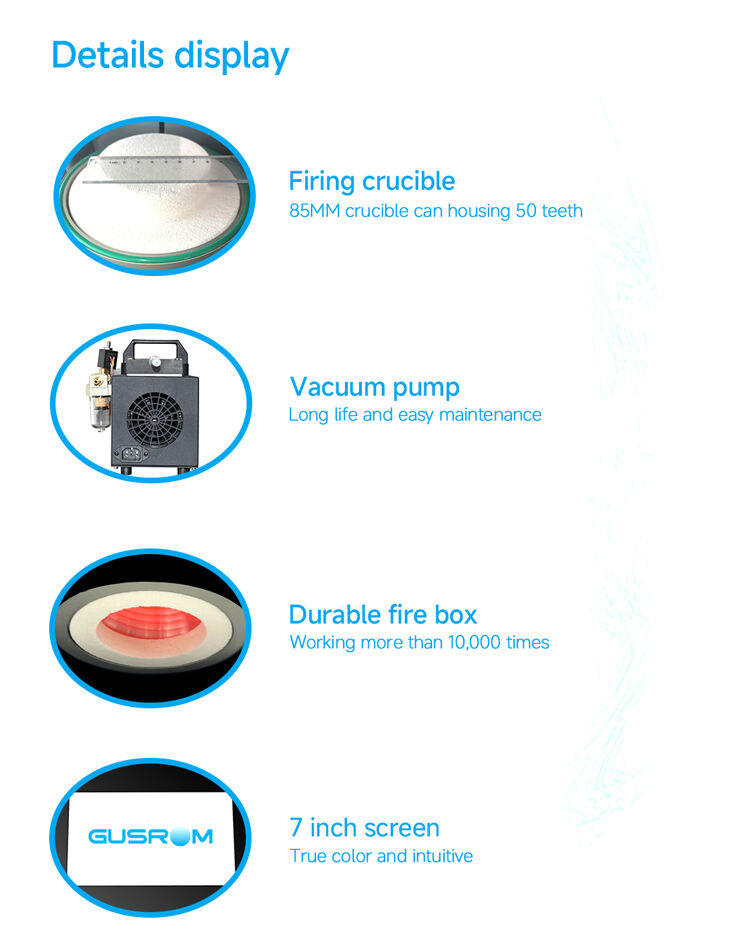

Adjustable Vacuum & Multi-Functional Programs: Customizable vacuum pressure (85-102%) for advanced process control. 30 preset programs, including cleaning(P29) and silver wire calibration(P30) is adaptable to complex clinical workflows.

Smart Touchscreen & Seamless Operation: 7-inch smartphone-like touch screen delivers intuitive control and program management. optimizing efficiency in dental labs.

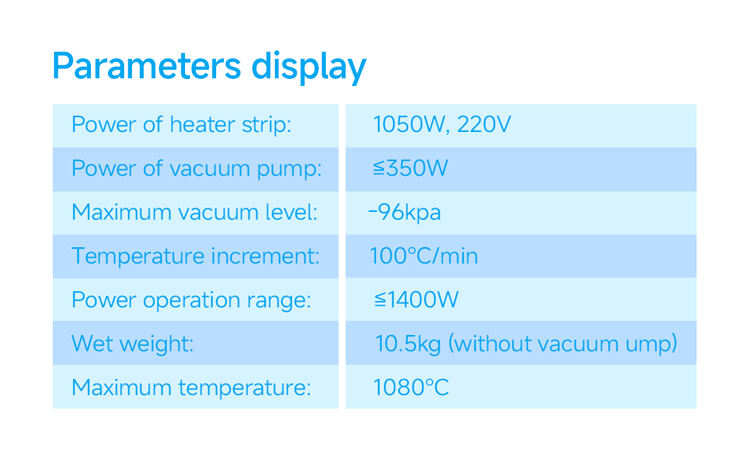

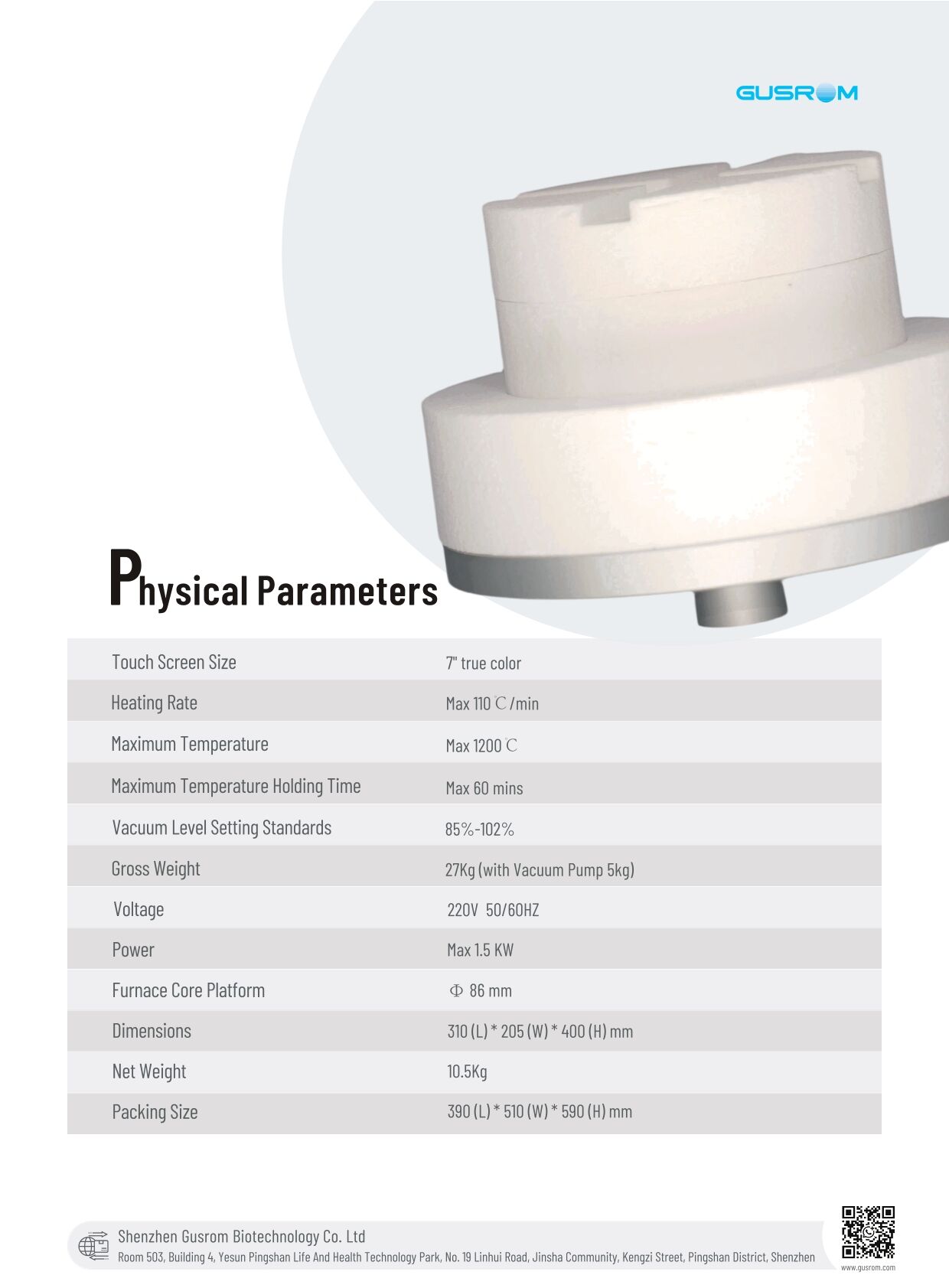

Product Parameter

Touch Screen Size: 7" true color

Heating Rate: Max 110°C/min

Maximum Temperature: Max 1200°C

Maximum Temperature Holding Time: Max 60 mins

Vacuum Level Setting Standards: 85%-102%

Gross Weight: 27Kg (with Vacuum Pump 5kg)

Voltage: 220V 50/60HZ

Power: Max 1.5 KW

Furnace Core Platform: φ86 mm

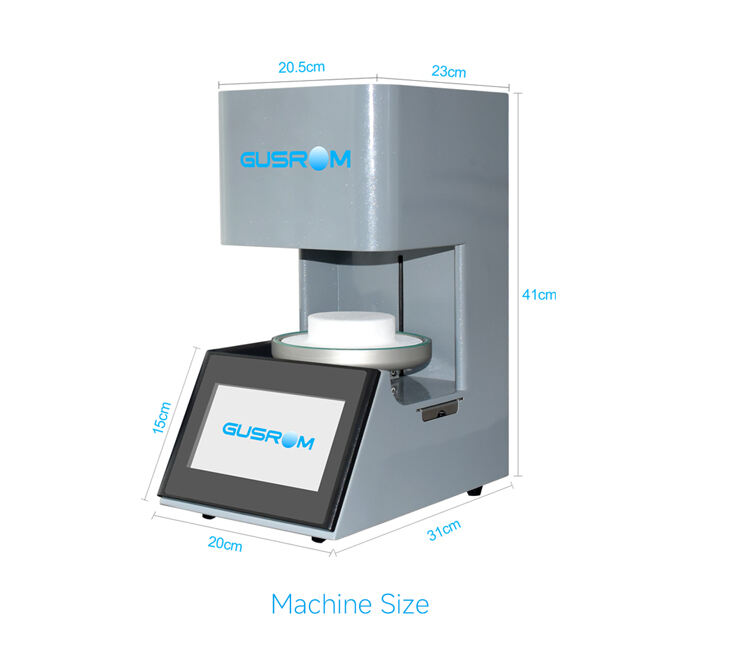

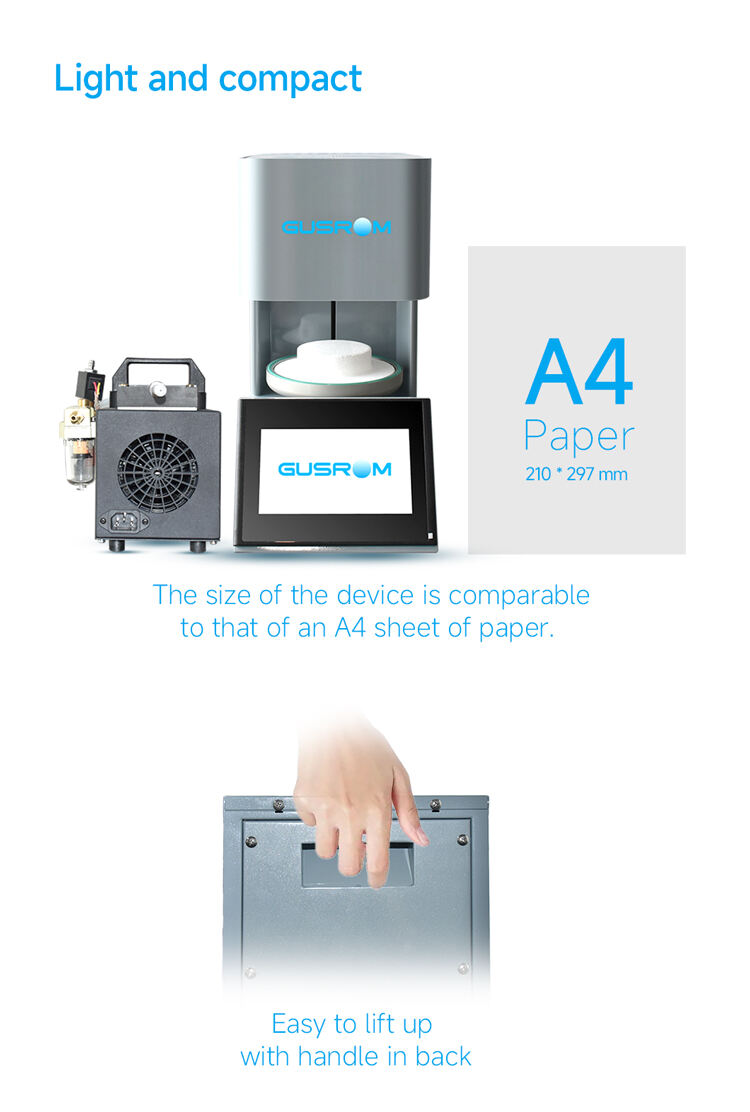

Dimensions : 310(L)*205(W)*400(H) mm

Net Weight: 10.5Kg

Packing Size: 390(L)*510(W)*590(H) mm
