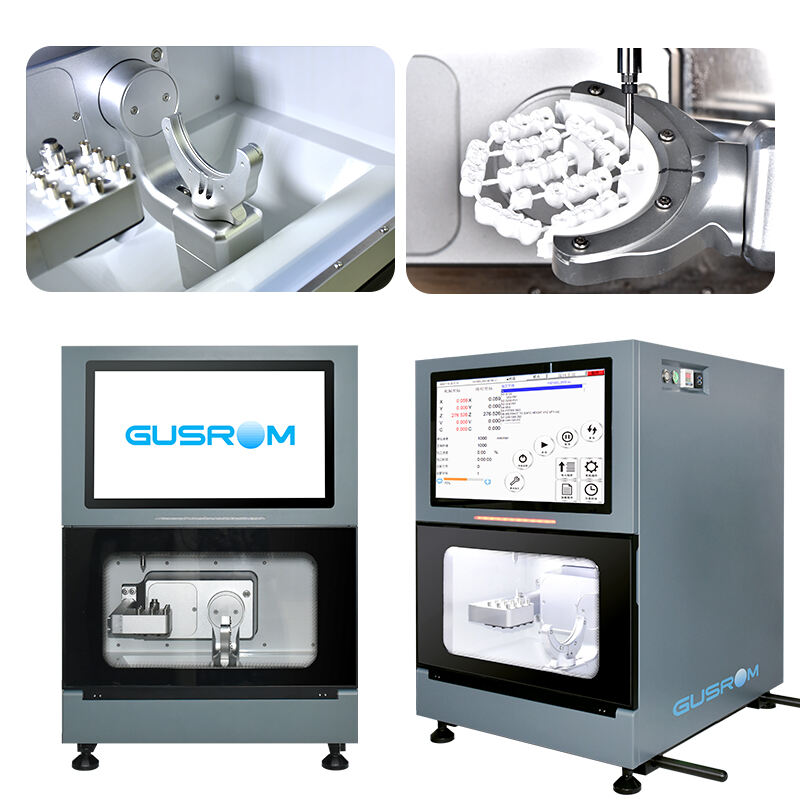

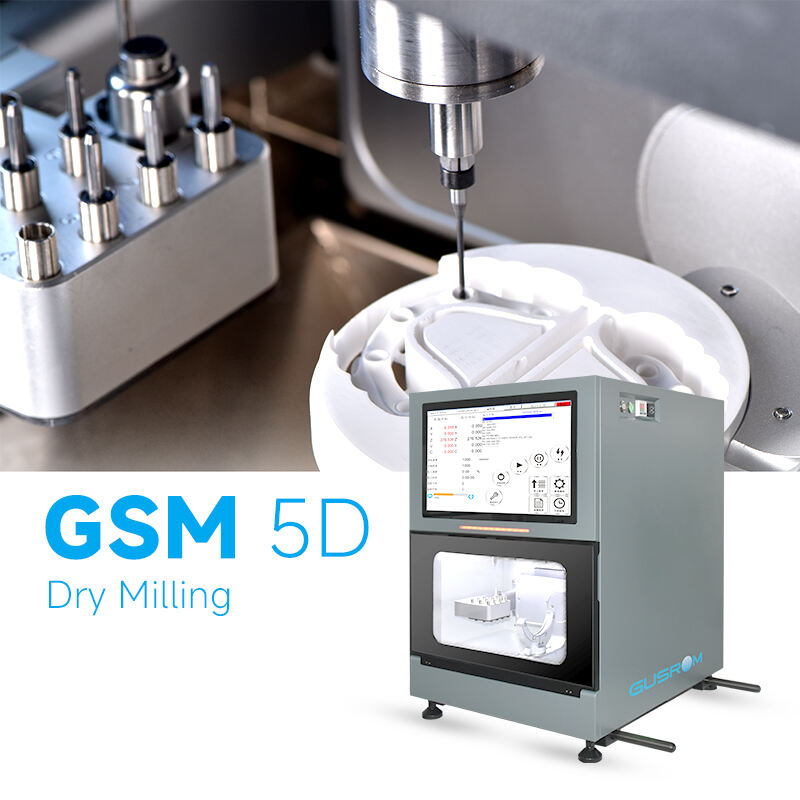

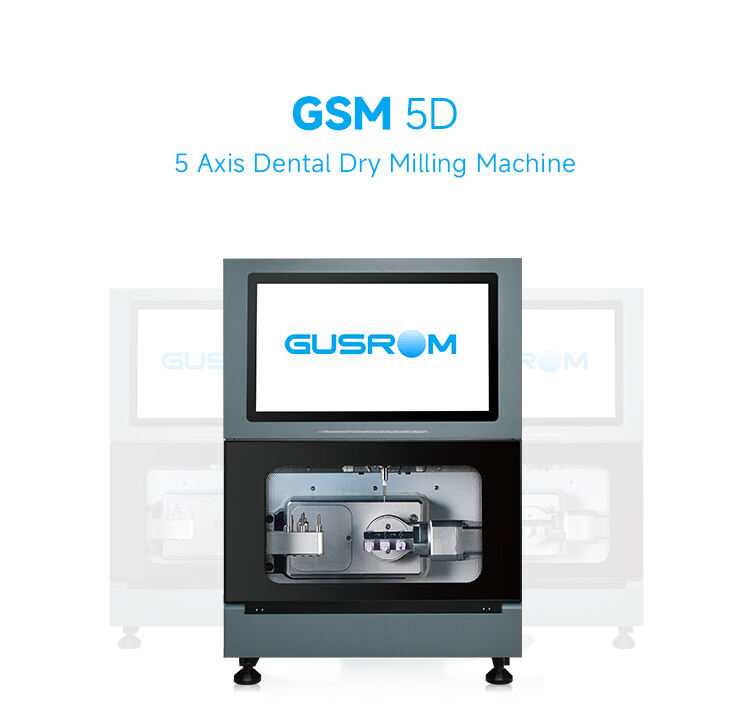

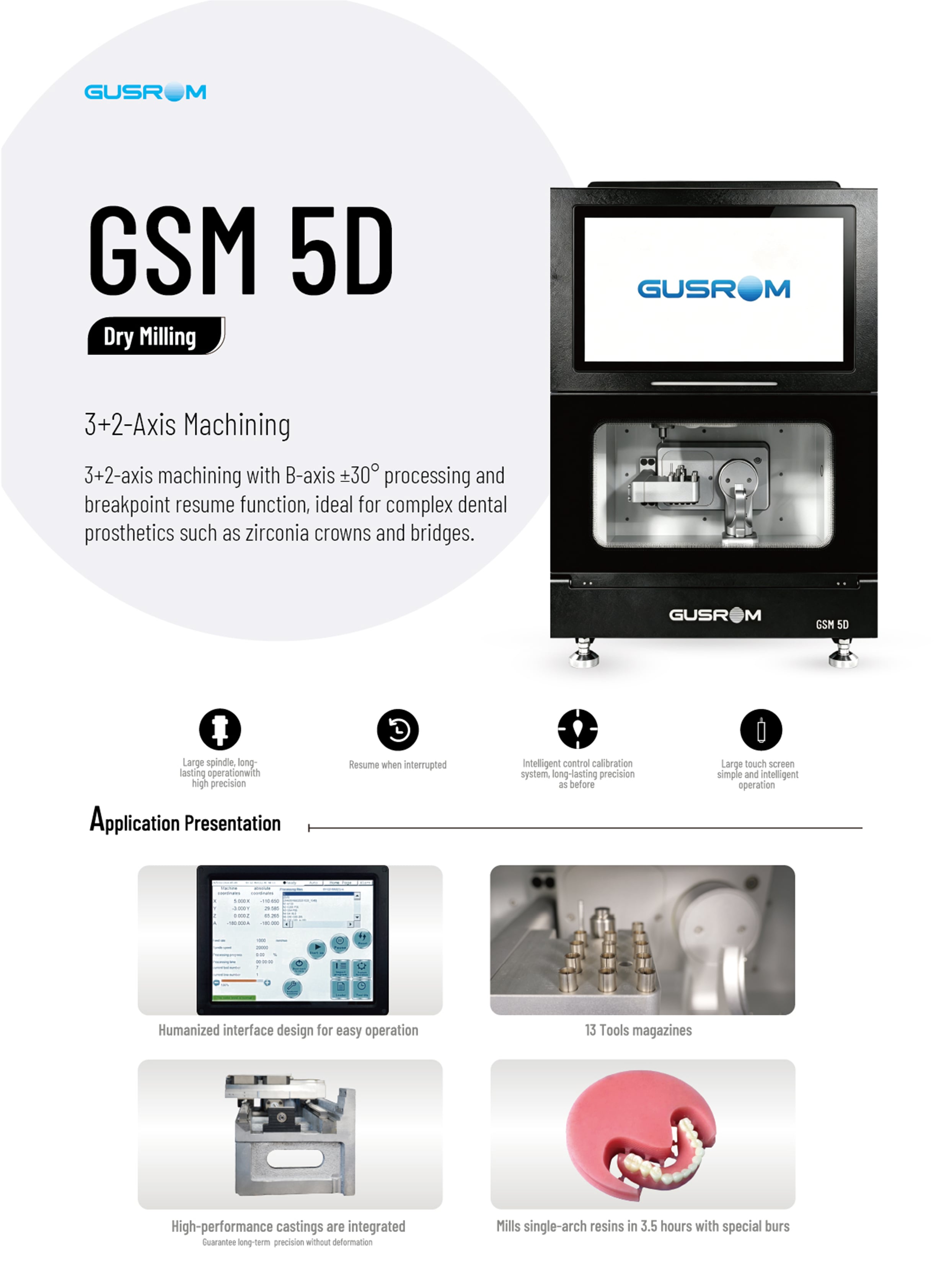

GSM 5D dry milling machine unleash the power of 24/7 denture production, with industrial-grade precision and full servo drive. The spindle reaches the 60,000rpm of high speed, enables speedy milling and rapid production of zirconia teeth.
Full Servo Drive, Industrial-Grade Precision Control
The dental milling machine is integrated high-performance castings, industrial ball screws, and imported electronic components, ensuring 24/7 reliability with micron-level accuracy. It’s resistant to deformation under heavy loads, available in long-life operation.

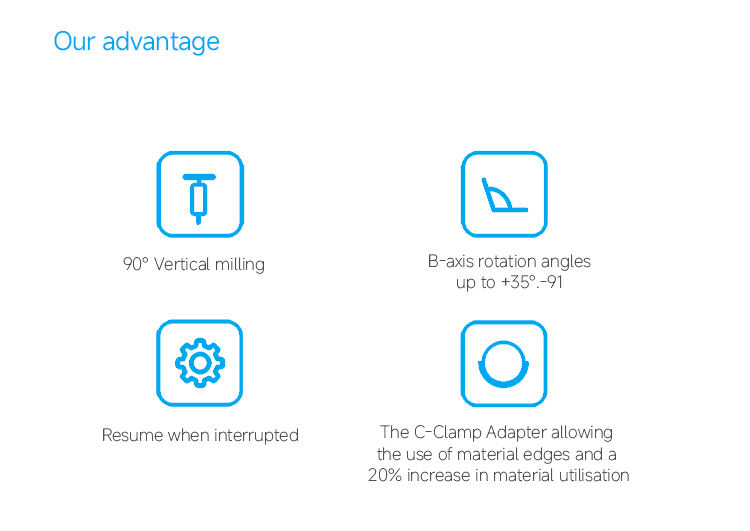

Axis Linkage & Adaptive Machining

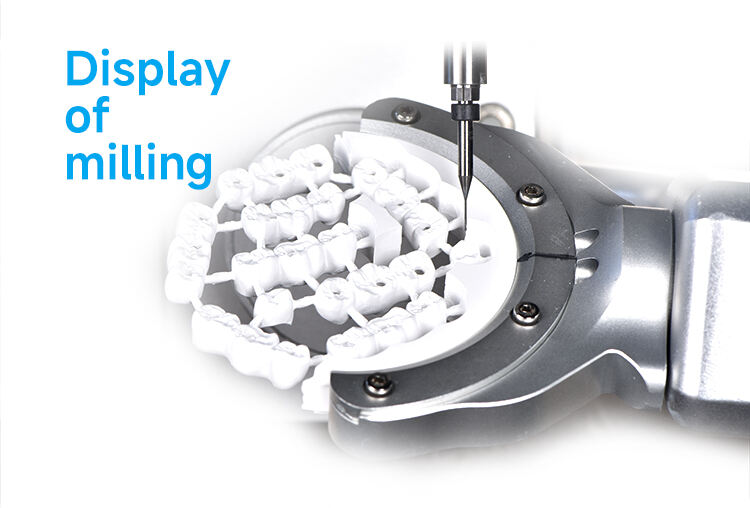

5-axis linkage & B-axis of 90°ensures large-angle processing and ultra-fine surface milling. The zirconia milling machine is ideal for fabricating complex dental prosthetics (such as zirconia crowns, bridges, etc.), suitable for CAD/CAM milling in dental laboratories.
Intelligent maintenance system allows smooth experience
Intelligent air-pressure protection enhance operational safety and efficiency for seasoned technicians and trainee technicians.
Tool management system intelligently identify life of milling burs, and change the milling burs to ensure smooth zirconia milling. This dental lab milling machine optimizes tool usage and batch of production consistency.

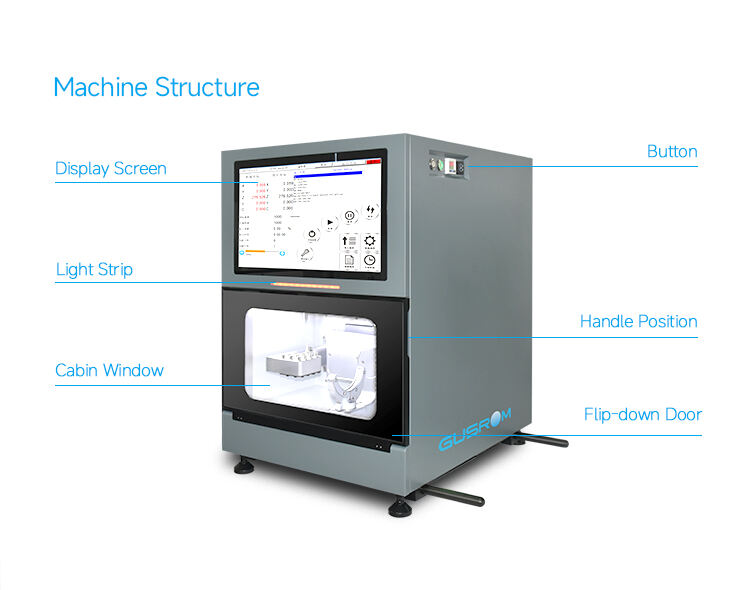

Intuitive Interface, smooth operation experience
User-friendly interface, touch screen operation and real-time processing report allow a smooth operation experience for dental technicians.
High-Speed Spindle, High-efficiency milling
60.000rpm spindle enables rapid milling and milling for a long time. GSM 5D dental zirconia milling machine also ensures stable milling under 24/7 no manual intervention, satisfying the need of mass denture production.
Axis number: five-axis linkage
Miling method: dry milling

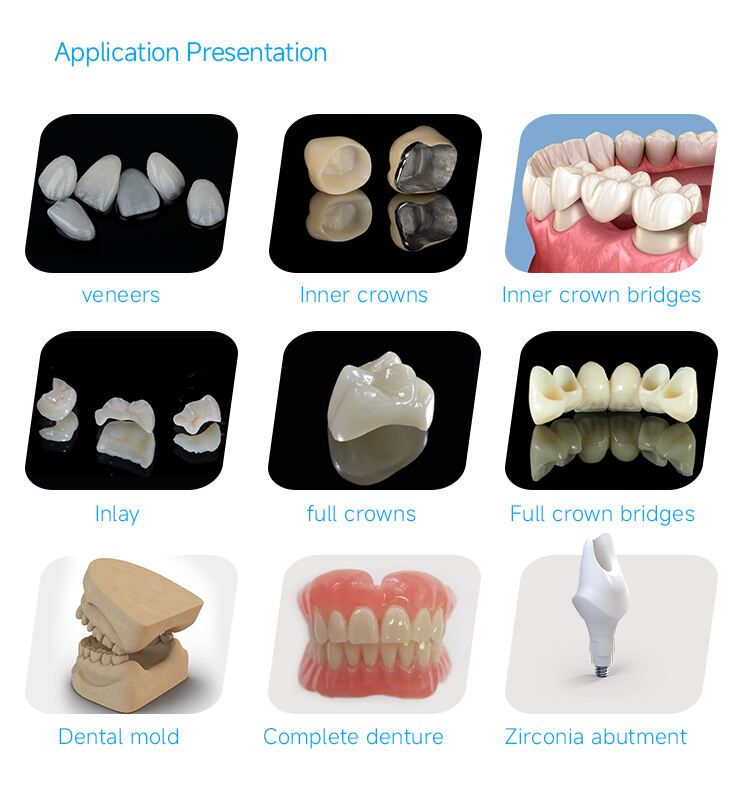

Milling types: inner crown, full crown, bridge, inlay, onlay, veneer, bracket

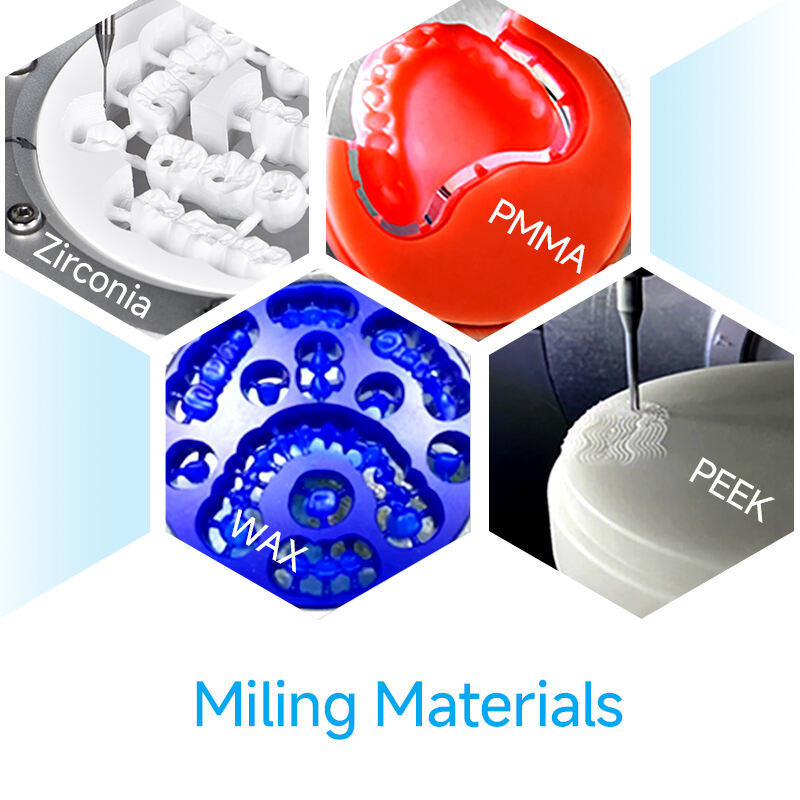

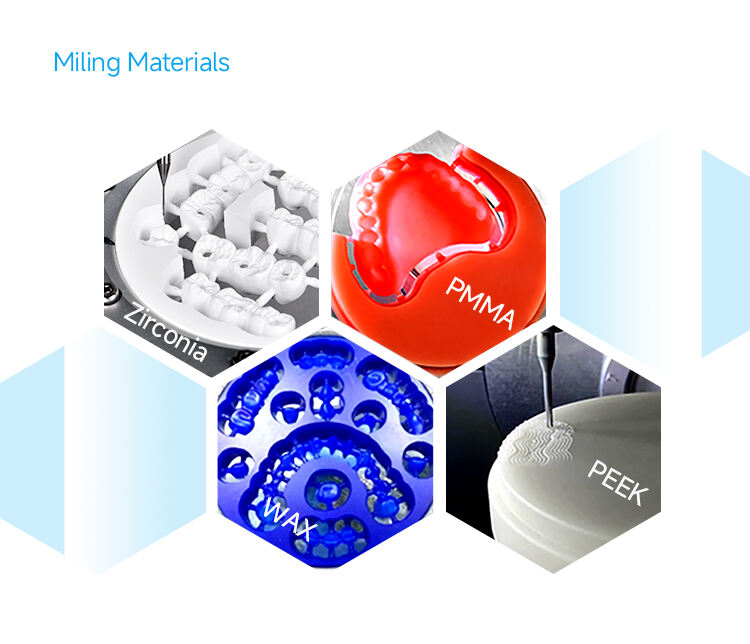

Milling material: zirconia block, wax, PMMA, PEEK, composite material
Material size: 98mm diameter, 10-30mm thickness disc
Stroke range: X/Y/Z: 200-120-120 A: 360° B: -38°～+135°
Spindle speed: 0～60000rpm/800W
Drive: full servo motor
Milling bur: 10 pcs Diameter: 4mm
Size: 530*650*760mm
Weight: 145KG
Required air pressure: 4.5-7.5bar
Compressed air flow: about 50L/min
Minimum dust suction volume: about 3000L/min
Power: 1500W
Power supply: 220-230V AC, 50/60HZ
